BECA 477
Description
The BECA 477 profile is a single acting wiper seal with a polyurethane metal cage.
Advantages
Tight and precise fitting in the housing
Very good external wiping effect
Excellent abrasion and wear resistance
Technical data
| Temperature | -30°C/+110°C |
|---|---|
| Speed | 1 m/s |
| Medias | Mineral hydraulic oils |
Applications
Agriculture
Mobile machinery
Material handling - Lifting
Hydraulic cylinders
Materials
Profiled seal
PU 94 Shore A - White
Metal cage
Steel
Dimensions
Materials
Metal cage
The table below shows the materials that we can offer for metal cages and springs.
| Application | Material | Standard | Characteristics |
|---|---|---|---|
| Metal cage | Non-alloy standard steel | AISI 1010 (DIN 1624) |
Cold rolled steel |
| Metal cage | Nickel chrome steel | AISI 304 (DIN 1.4301 - V2A) |
Standard stainless steel |
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
| Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
|---|---|
| Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
| Temperature range | -30°C/+90°C -30°C / +110°C with our PUHT |
Technical data

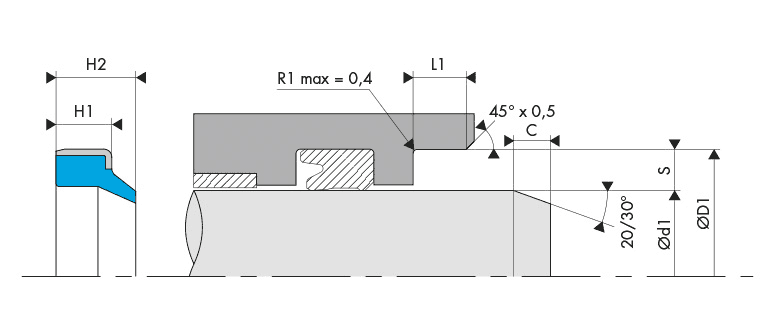

Surface roughness
| Roughness | Dynamic surface area | Static surface area | Groove flanks |
|---|---|---|---|
| Ra | 0.1 - 0.4 µm | ≤ 1.6 µm | ≤ 3.2 µm |
| Rz | 0.63 - 2.5 µm | ≤ 6.3 µm | ≤ 10.0 µm |
| Rmax | 1.0 - 4.0 µm | ≤ 10.0 µm | ≤ 16.0 µm |
Chamfer
The chamfer length as well as the chamfer angle are determined by the rod seal.
|
477.0100205
|
10,00 | 20,00 | 5,00 | 8,00 |
|
477.0120204
|
12,00 | 20,00 | 4,00 | 6,00 |
|
477.0150255
|
15,00 | 25,00 | 5,00 | 7,00 |
|
477.0160223
|
16,00 | 22,00 | 3,00 | 4,00 |
|
477.0160265
|
16,00 | 26,00 | 5,00 | 8,00 |
|
477.0170243
|
17,00 | 24,00 | 3,50 | 5,00 |
|
477.0180285
|
18,00 | 28,00 | 5,00 | 7,00 |
|
477.0180306
|
18,00 | 30,00 | 6,00 | 9,00 |
|
477.0200283
|
20,00 | 28,00 | 3,50 | 5,00 |
|
477.0200304
|
20,00 | 30,00 | 4,00 | 6,00 |
|
477.0200305
|
20,00 | 30,00 | 5,00 | 8,00 |
|
477.0250355
|
25,00 | 35,00 | 5,00 | 8,00 |
|
477.0250376
|
25,00 | 37,00 | 6,00 | 9,00 |
|
477.0280385
|
28,00 | 38,00 | 5,00 | 8,00 |
|
477.0280387
|
28,00 | 38,00 | 7,00 | 10,00 |
|
477.0300405
|
30,00 | 40,00 | 5,00 | 8,00 |
|
477.0300426
|
30,00 | 42,00 | 6,00 | 9,00 |
|
477.0300455
|
30,00 | 45,00 | 5,00 | 8,00 |
|
477.0320425
|
32,00 | 42,00 | 5,00 | 8,00 |
|
477.0320426
|
32,00 | 42,00 | 6,00 | 9,00 |
|
477.0320457
|
32,00 | 45,00 | 7,00 | 10,00 |
|
477.0320528
|
32,00 | 52,00 | 8,00 | 11,00 |
|
477.0350457
|
35,00 | 45,00 | 7,00 | 10,00 |
|
477.0350477
|
35,00 | 47,00 | 7,00 | 10,00 |
|
477.0400505
|
40,00 | 50,00 | 5,00 | 8,00 |
|
477.0400507
|
40,00 | 50,00 | 7,00 | 10,00 |
|
477.0400527
|
40,00 | 52,00 | 7,00 | 10,00 |
|
477.0400607
|
40,00 | 60,00 | 7,00 | 10,00 |
|
477.0450557
|
45,00 | 55,00 | 7,00 | 10,00 |
|
477.0450577
|
45,00 | 57,00 | 7,00 | 10,00 |
|
477.0450607
|
45,00 | 60,00 | 7,00 | 10,00 |
|
477.0500607
|
50,00 | 60,00 | 7,00 | 10,00 |
|
477.0500627
|
50,00 | 62,00 | 7,00 | 10,00 |
|
477.0550655
|
55,00 | 65,00 | 5,00 | 8,00 |
|
477.0550657
|
55,00 | 65,00 | 7,00 | 10,00 |
|
477.0550698
|
55,00 | 69,00 | 8,00 | 11,00 |
|
477.0600707
|
60,00 | 70,00 | 7,00 | 10,00 |
|
477.0600745
|
60,00 | 74,00 | 5,00 | 8,00 |
|
477.0600748
|
60,00 | 74,00 | 8,00 | 11,00 |
|
477.0630757
|
63,00 | 75,00 | 7,00 | 10,00 |
|
477.0650757
|
65,00 | 75,00 | 7,00 | 10,00 |
|
477.0650798
|
65,00 | 79,00 | 8,00 | 11,00 |
|
477.0700807
|
70,00 | 80,00 | 7,00 | 10,00 |
|
477.0700848
|
70,00 | 84,00 | 8,00 | 11,00 |
|
477.0750857
|
75,00 | 85,00 | 7,00 | 10,00 |
|
477.0750898
|
75,00 | 89,00 | 8,00 | 11,00 |
|
477.0800907
|
80,00 | 90,00 | 7,00 | 10,00 |
|
477.0800948
|
80,00 | 94,00 | 8,00 | 11,00 |
|
477.0850957
|
85,00 | 95,00 | 7,00 | 10,00 |
|
477.0850998
|
85,00 | 99,00 | 8,00 | 11,00 |
|
477.0901007
|
90,00 | 100,00 | 7,00 | 10,00 |
|
477.0901048
|
90,00 | 104,00 | 8,00 | 11,00 |
|
477.0951057
|
95,00 | 105,00 | 7,00 | 10,00 |
|
477.0951098
|
95,00 | 109,00 | 8,00 | 11,00 |
|
477.1001107
|
100,00 | 110,00 | 7,00 | 10,00 |
|
477.1001148
|
100,00 | 114,00 | 8,00 | 11,00 |
|
477.1051219
|
105,00 | 121,00 | 9,00 | 12,00 |
|
477.1101207
|
110,00 | 120,00 | 7,00 | 10,00 |
|
477.1101269
|
110,00 | 126,00 | 9,00 | 12,00 |
|
477.1151319
|
115,00 | 131,00 | 9,00 | 12,00 |
|
477.1201307
|
120,00 | 130,00 | 7,00 | 10,00 |
|
477.1201369
|
120,00 | 136,00 | 9,00 | 12,00 |
|
477.1301469
|
130,00 | 146,00 | 9,00 | 12,00 |
|
477.1401601
|
140,00 | 160,00 | 10,00 | 14,00 |
|
477.1501701
|
150,00 | 170,00 | 10,00 | 14,00 |
|
477.1601801
|
160,00 | 180,00 | 10,00 | 14,00 |
