The BECA 580 - 581 profiles are U-ring type piston seals with asymmetrical rubber lips.

Advantages

Reliable sealing for "dry air" pneumatic applications when mineral oils or greases may be present
Excellent wear resistance
Very good sealing
Closed groove assembly

Technical data

Temperature

-30°C/+150°C

Pressure

1.6 MPa

Speed

1 m/s

Medias

Lubricated air
Oil-free air
Non-aggressive gases

Applications

Shock absorbers
Distributor
Standard cylinders

Materials

NBR 75 Shore A
NBR 80 Shore A
FKM 80 Shore A

Dimensions
Materials
Technical data

Dimensions

580.1002006, 580.1004008, 580.009SPK8, 580.1009003, 580.1011004, 580.1012006, 580.1013006, 580.1014007, 580.1016008, 580.1016010, 580.1017012, 580.1431893, 580.1019012, 580.1019009, 580.0200107, 580.1020012, 580.1020014, 580.1020011, 580.1021014, 580.1022012, 580.FJ02214, 580.1024014, 580.1017024, 580.0250174, 580.1025017, 580.1025018, 580.1026016, 580.1027017, 580.1028015, 580.1029019, 580.1030020, 580.4030024, 580.1030017, 580.1031019, 580.1032019, 580.0320229, 580.1032024, 580.1033020, 580.1034015, 580.1025034, 580.1034022, 580.1035022, 580.1036023, 580.1037026, 580.1038030, 580.1038025, 580.1040027, 580.1040030, 580.FJ04030, 580.1041025, 580.1042030, 580.1043030, 580.1044028, 580.1045035, 580.1046028, 580.1047031, 580.1048032, 580.1049035, 580.6050040, 580.1050040, 580.FJ05040, 580.1050034, 580.1051041, 580.1053038, 580.1054041, 580.1055045, 580.1057044, 580.1057041, 580.1060050, 580.1060044, 580.1061048, 580.FJ06353, 580.0630478, 580.1063047, 580.1064046, 580.1065055, 580.1066050, 580.1067051, 580.1069050, 580.1070054, 580.1070058, 580.1073063, 580.1073053, 580.1075063, 580.1076057, 580.2076057, 580.1079060, 580.1080067, 580.1080068, 580.1082063, 580.1083071, 580.1085073, 580.1086073, 580.1088069, 580.1089076, 580.2090078, 580.1090078, 580.1092076, 580.1095076, 580.2095076, 580.1099086, 580.1100088, 580.1101082, 580.1020891, 580.1102089, 580.1105089, 580.1105093, 580.1107088, 580.1108095, 580.1110098, 580.1111094, 580.1115089, 580.1150951, 580.1118105, 580.1120105, 580.1120095, 580.1121108, 580.1124111, 580.F125110, 580.1127101, 580.1127108, 580.1130117, 580.1133107, 580.1134121, 580.1137124, 580.1139114, 580.1140125, 580.1140127, 580.1143130, 580.1145130, 580.1146120, 580.1149136, 580.1150135, 580.1153127, 580.1159133, 580.1160145, 580.1165139, 580.1171146, 580.1172153, 580.1178152, 580.1180160, 580.1184165, 580.1184152, 580.1191159, 580.1197165, 580.1200180, 580.1204172, 580.1210178, 580.1216184, 580.1220200, 580.1222190, 580.1223201, 580.1228196, 580.1229210, 580.1235203, 580.1242210, 580.1248216, 580.1250230, 580.1253234, 580.1254222, 580.1254235, 580.1261229, 580.1266234, 580.1267248, 580.1274242, 580.1280248, 580.1286254, 580.1292260, 580.1299267, 580.1300268, 580.1304273, 580.1305279, 580.1330311, 580.1343323, 580.1356335

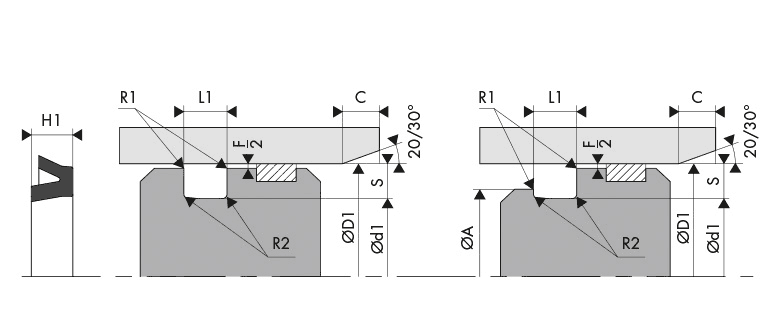

Installation drawingLogement Gorge Joint de piston - Housing Groove Gland Piston seal BECA 580 - 581

Materials

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C/+100°C

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Fuel (including high alcohol content)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids
Ammonia gas
Organic acids with a low molecular weight (formic and acetic acids)
Temperature range -20°C/+200°C

Technical data

Housing Groove Gland piston seal - BECA 580 - 581

Extrusion gaps

Pressure
MPa
Radial extrusion gap
F/2
1.0 MPa 0.25
1.5 MPa 0.20
6.5 MPa 0.10
8.0 MPa 0.05

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
3.00 0.30 0.50 2.00
4.00 0.30 0.50 2.00
5.00 0.40 0.60 2.50
6.00 0.50 0.70 3.00
7.50 0.80 1.00 4.00
10.00 0.80 1.00 5.00
175 dimensions found
580.1002006
Standard request
6,00 2,00 2,80 3,50
580.1004008
Standard request
8,00 4,00 2,80 3,50
580.009SPK8
Standard request
9,00 3,00 6,20 6,90
580.1009003
Standard request
9,50 3,17 3,96 5,50
580.1011004
Standard request
11,10 4,76 3,96 5,50
580.1012006
Standard request
12,00 6,00 4,00 5,50
580.1013006
Standard request
13,00 6,70 4,76 6,30
580.1014007
Standard request
14,00 7,70 4,76 6,30
580.1016008
Standard request
16,00 8,10 5,55 7,00
580.1016010
Standard request
16,00 10,00 4,00 5,50
580.1017012
Standard request
17,50 12,60 3,17 5,00
580.1431893
Standard request
18,90 14,30 3,50 5,00
580.1019012
Standard request
19,00 12,70 3,17 5,00
580.1019009
Standard request
19,05 9,52 6,35 7,14
580.0200107
Standard request
20,00 10,00 7,00 8,50
580.1020012
Standard request
20,00 12,00 5,50 7,00
580.1020014
Standard request
20,00 14,00 4,00 5,50
580.1020011
Standard request
20,62 11,10 6,35 7,14
580.1021014
Standard request
21,00 14,70 6,35 8,00
580.1022012
Standard request
22,00 12,50 6,35 8,00
580.FJ02214
Standard request
22,00 14,00 6,00 7,00
580.1024014
Standard request
24,00 14,50 6,35 8,00
580.1017024
Standard request
24,70 17,00 5,00 5,50
580.0250174
Standard request
25,00 17,00 4,50 4,80
580.1025017
Standard request
25,00 17,00 5,50 7,00
580.1025018
Standard request
25,00 18,00 4,00 5,50
580.1026016
Standard request
26,00 16,50 6,35 8,00
580.1027017
Standard request
27,00 17,50 6,35 8,00
580.1028015
Standard request
28,57 15,87 7,92 9,52
580.1029019
Standard request
29,00 19,05 6,35 8,00
580.1030020
Standard request
30,00 20,50 6,20 8,00
580.4030024
Standard request
30,00 24,00 4,00 5,00
580.1030017
Standard request
30,15 17,45 7,92 9,52
580.1031019
Standard request
31,75 19,05 7,92 9,52
580.1032019
Standard request
32,00 19,30 6,35 8,00
580.0320229
Standard request
32,00 22,20 9,00 9,40
580.1032024
Standard request
32,00 24,00 5,50 7,00
580.1033020
Standard request
33,32 20,62 7,92 9,52
580.1034015
Standard request
34,00 15,00 9,52 11,00
580.1025034
Standard request
34,00 25,00 8,20 8,70
580.1034022
Standard request
34,92 22,22 7,92 9,52
580.1035022
Standard request
35,00 22,30 6,35 8,00
580.1036023
Standard request
36,50 23,80 7,92 9,52
580.1037026
Standard request
37,00 26,00 6,35 8,00
580.1038030
Standard request
38,00 30,00 6,35 8,00
580.1038025
Standard request
38,10 25,40 7,92 9,52
580.1040027
Standard request
40,00 27,30 6,35 8,00
580.1040030
Standard request
40,00 30,00 7,00 8,50
580.FJ04030
Standard request
40,00 30,00 7,50 8,50
580.1041025
Standard request
41,27 25,40 9,52 11,10
580.1042030
Standard request
42,00 30,90 6,35 8,00
580.1043030
Standard request
43,00 30,30 9,52 11,00
580.1044028
Standard request
44,45 28,57 9,52 11,10
580.1045035
Standard request
45,00 35,50 7,00 8,50
580.1046028
Standard request
46,00 28,20 10,20 12,00
580.1047031
Standard request
47,62 31,75 9,52 11,10
580.1048032
Standard request
48,00 32,10 7,93 9,50
580.1049035
Standard request
49,00 35,00 9,52 11,00
580.6050040
Standard request
50,00 40,00 6,00 7,00
580.1050040
Standard request
50,00 40,00 7,00 8,50
580.FJ05040
Standard request
50,00 40,00 7,50 8,50
580.1050034
Standard request
50,80 34,92 9,52 11,10
580.1051041
Standard request
51,00 41,50 7,14 9,00
580.1053038
Standard request
53,97 38,10 9,52 11,11
580.1054041
Standard request
54,00 41,30 9,52 11,00
580.1055045
Standard request
55,00 45,00 7,00 8,50
580.1057044
Standard request
57,00 44,30 6,35 8,00
580.1057041
Standard request
57,15 41,27 9,52 11,10
580.1060050
Standard request
60,00 50,00 7,00 8,50
580.1060044
Standard request
60,32 44,45 9,52 11,10
580.1061048
Standard request
61,00 48,30 6,35 8,00
580.FJ06353
Standard request
63,00 53,00 7,00 7,50
580.0630478
Standard request
63,50 47,62 7,93 9,52
580.1063047
Standard request
63,50 47,62 9,52 11,10
580.1064046
Standard request
64,00 46,30 8,85 10,50
580.1065055
Standard request
65,00 55,00 7,00 8,00
580.1066050
Standard request
66,67 50,80 9,52 11,10
580.1067051
Standard request
67,00 51,10 8,85 10,50
580.1069050
Standard request
69,85 50,80 12,70 14,30
580.1070054
Standard request
70,00 54,10 7,93 9,50
580.1070058
Standard request
70,00 58,00 8,50 10,00
580.1073063
Standard request
73,00 63,50 5,55 7,00
580.1073053
Standard request
73,02 53,97 12,70 14,30
580.1075063
Standard request
75,00 63,00 8,50 10,00
580.1076057
Standard request
76,00 57,90 8,73 10,50
580.2076057
Standard request
76,20 57,15 12,70 14,30
580.1079060
Standard request
79,37 60,32 12,70 14,30
580.1080067
Standard request
80,00 67,30 6,35 8,00
580.1080068
Standard request
80,00 68,00 8,50 10,00
580.1082063
Standard request
82,55 63,50 12,70 14,30
580.1083071
Standard request
83,00 71,90 7,10 8,50
580.1085073
Standard request
85,00 73,00 8,50 10,00
580.1086073
Standard request
86,00 73,30 9,52 11,00
580.1088069
Standard request
88,90 69,85 12,70 14,30
580.1089076
Standard request
89,00 76,30 6,35 8,00
580.2090078
Standard request
90,00 78,00 6,50 7,00
580.1090078
Standard request
90,00 78,00 8,50 10,00
580.1092076
Standard request
92,00 76,10 9,52 11,00
580.1095076
Standard request
95,00 76,70 7,40 9,00
580.2095076
Standard request
95,25 76,20 12,70 14,30
