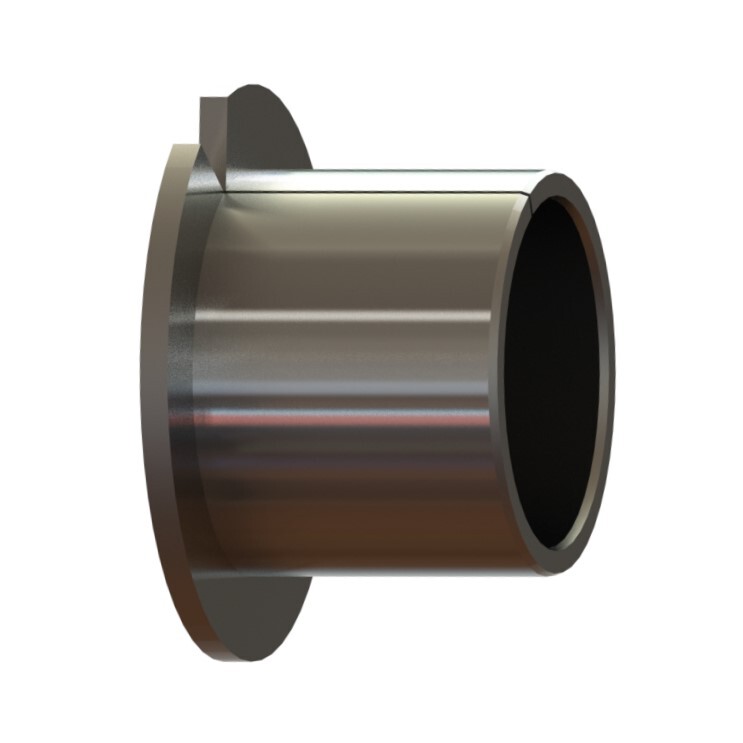

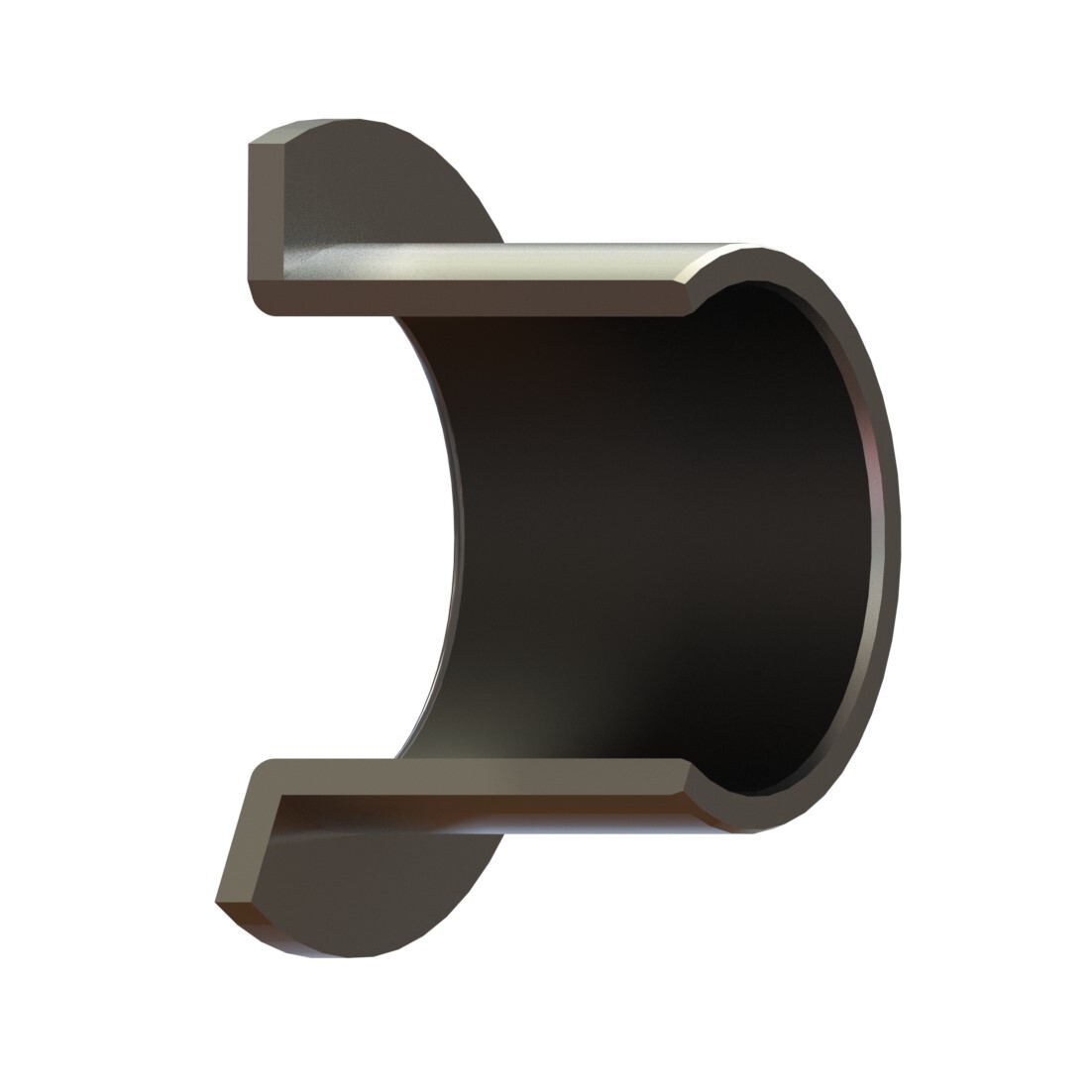

BECA 080B (Steel)

Sliding bearings / Wrapped bushings

Copie de BECA 080A

Description

The BECA 150 - 152 - 154 profiles are single acting composite rod seals composed of a filled PTFE friction ring and pre-tightened rubber O'Ring. They can be assembled in grooves according to standard ISO 7425/2. Option of connecting the seal to a back-up ring.

Advantages

Optimal sealing in static and dynamic applications
Low friction coefficient; no stick-slip effect
Excellent abrasion and extrusion resistance
Wide temperature range and excellent chemical resistance, depending on the material selected for the O'Ring

Applications

Mobile machinery
Injection presses
Machine tools
Presses
Standard cylinders

Download

Product data - Hydraulic rod seal - BECA 150 - 152 - 154 Product catalog - Hydraulic seals - Rod seals Product catalog - Hydraulic seals

Dimensions

Technical data

Dimensions

Installation drawing Logement Gorge joint de tige Housing Groove rod seal BECA 150 - 152 - 154

Technical data

Housing Groove Gland Rod Seal - BECA 150 - 152 - 154

Extrusion gaps

Radial section S	Radial extrusion gap F/2
Radial section S	10 MPa	20 MPa	40 MPa
2.45	0.30	0.20	0.15
3.65	0.40	0.25	0.15
5.35	0.50	0.30	0.20
7.55	0.70	0.40	0.25
10.25	0.80	0.60	0.35
12.00	0.90	0.70	0.40
13.65	1.00	0.80	0.50
19.00	1.20	0.90	0.60

Surface roughness

Roughness	Dynamic surface area	Static surface area	Groove flanks
Ra	0.05 - 0.2 µm	≤ 1.6 µm	≤ 3.2 µm
Rz	0.40 - 1.6 µm	≤ 6.3 µm	≤ 10.0 µm
Rmax	0.63 - 2.5 µm	≤ 10.0 µm	≤ 16.0 µm

Chamfers and radius

Radial section S	Radius R1	Radius R2	Chamfer C
2.45	0.30	0.40	3.00
3.65	0.30	0.60	3.00
5.35	0.30	1.00	3.00
7.55	0.30	1.30	5.00
10.25	0.30	1.80	6.00
12.00	0.30	1.80	8.00
13.65	0.30	2.50	10.00
19.00	0.30	3.00	12.00

74 dimensions found

080.006004B Standard request
080.006007B Standard request
080.006008B Standard request
080.008005B Standard request
080.008006B Standard request
080.008007B Standard request
080.008008B Standard request
080.008009B Standard request
080.008010B Standard request
080.010007B Standard request
080.010009B Standard request
080.010012B Standard request
080.010017B Standard request
080.012007B Standard request
080.012009B Standard request
080.012012B Standard request
080.012015B Standard request
080.012017B Standard request
080.014012B Standard request
080.014017B Standard request
080.015009B Standard request
080.015012B Standard request
080.015017B Standard request
080.016012B Standard request
080.016017B Standard request
080.018012B Standard request
080.018017B Standard request
080.018020B Standard request
080.020011B Standard request
080.020012B Standard request
080.020015B Standard request
080.020016B Standard request
080.020017B Standard request
080.020021B Standard request
080.020022B Standard request
080.022015B Standard request
080.022020B Standard request
080.025011B Standard request
080.025012B Standard request
080.025016B Standard request
080.025017B Standard request
080.025021B Standard request
080.025022B Standard request
080.030016B Standard request
080.030026B Standard request
080.035016B Standard request
080.035026B Standard request
080.040016B Standard request
080.040026B Standard request
080.045016B Standard request
080.045026B Standard request
080.045030B Standard request
080.045040B Standard request
080.050020B Standard request
080.050030B Standard request
080.050040B Standard request
080.055030B Standard request
080.055040B Standard request
080.060030B Standard request
080.060040B Standard request
080.065030B Standard request
080.065040B Standard request
080.070030B Standard request
080.070040B Standard request
080.075030B Standard request
080.075040B Standard request
080.080030B Standard request
080.080040B Standard request
080.085030B Standard request
080.085040B Standard request
080.090030B Standard request
080.090040B Standard request
080.095030B Standard request
080.095040B Standard request
