Description

The EBC profile is a cover seal composed of a single external metal cage with a rubber coating covering half of the outside of the cage.

Advantages

Good radial rigidity, particularly for large diameters
Good stability when assembled, preventing the bounce-back effect
Good static sealing
Good thermal expansion compensation
Good heat transfer

Technical data

Temperature

-40°C/+200°C

Pressure

0.50 MPa

Applications

Transmissions
Gear motor
Pumps
Motors

Materials

Rubber

NBR 70 - 75 Shore A
FKM 70 - 75 Shore A

Metal cage

Steel - AISI 1010
Stainless steel - AISI 304
Stainless steel - AISI 316

Dimensions
Materials
Housing design

Dimensions

Installation drawingLogement Gorge Bouchon obturateur - Housing Groove End cover - EBC

Materials

Metal cage

The table below shows the materials that we can offer for metal cages.

Application Material Standard Characteristics
Metal cage Non-alloy standard steel AISI 1010
(DIN 1624)
Cold rolled steel
Metal cage Nickel chrome steel AISI 304
(DIN 1.4301 - V2A)
Standard stainless steel
Metal cage Chrome-nickel-molybdenum steel AISI 316
(DIN 1.4401 - V4A)
Stainless steel highly resistant to corrosion

Rubbers

ACM (Polyacrylate)

Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.

Chemical resistance Mineral oils (motor oils, gear box oils, ATF oils)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids (Dot 3 & 4)
Aromatic and chlorinated hydrocarbons
Water and steam
Acids, alkalis and amines
Temperature range -25°C to + 150°C (short-term peak at +160°C)
-35°C / +150°C with particular ACMs
AEM (ethylene acrylate rubber)

As a methyl acrylate and ethylene copolymer, AEM is considered to be more resistant to heat than ACM. Its characteristics make it an intermediary between ACM and FKM.

Chemical resistance Cooling fluids
Aggressive mineral oils
Atmospheric agents
Water
Compatibility issue Aromatic solvents
Strong acids
Brake fluids
Gearbox oils
ATF oils
Temperature range - 40°C to + 150°C
CR (Polychloroprene)

This CR-based rubber is used in the refrigeration industry and for ventilation systems. This chloroprene was the first synthetic rubber to be developed and marketed.

Chemical resistance Paraffinic mineral oils
Silicone oils and greases
Water and water-based solvents for use at low temperatures
Refrigerant fluids
Ammoniac
Carbon dioxide
Atmospheric and ozone agents
Limited chemical resistance Naphthenic mineral oils
Aliphatic hydrocarbons (propane, butane, petroleum)
Glycol-based brake fluids
Compatibility issue Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Temperature range -40°C / +100°C (short-term peak at +120°C)
EPDM (Ethylene Propylene Diene Monomer rubber)

As an Ethylene Propylene Diene Monomer copolymer, EPDM is commonly used for hot water taps, cooling systems, brake systems, dishwashers and washing machines.

Chemical resistance Hot water and steam up to +150°C
Glycol-based brake fluids (Dot 3 & 4) and silicone-based brake fluids (Dot 5)
Organic and inorganic acids
Cleaning agents, sodium and potassium alkalis
Hydraulic fluids (HFD-R)
Silicone oils and greases
Polar solvents (alcohols, ketones and esters)
Atmospheric and ozone agents
Compatibility issue Mineral oils and greases
Hydrocarbons
Low impermeability to gas
Temperature range -45°C / +150°C (short-term peak at +175°C)
FFKM (perfluorinated rubber)

FFKM has the best characteristics for resistance to high temperatures, with an excellent chemical inertia. This FKM-based rubber is very often used for high-temperature hydraulic and pneumatic systems, industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance Aliphatic and aromatic hydrocarbons
Polar solvents (ketones, esters and ethers)
Organic and inorganic acids
Water and steam
High-vacuum system
Compatibility issue Coolants (R11, R12, R13, R113, R114, etc.)
PFPE
Temperature range -15°C/+320°C
FKM (fluorinated rubber)

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Fuel (including high alcohol content)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids
Ammonia gas
Organic acids with a low molecular weight (formic and acetic acids)
Temperature range -20°C / +200°C (short-term peak at +230°C)
-40°C / +200°C with particular FKMs
FVMQ (fluorosilicone rubber)

The FVMQ has mechanical and physical properties that are very similar to those of the VMQ. However, the FVMQ offers better resistance to fuels and mineral oils. However, resistance to hot air is not as good as that of the VMQ.

Chemical resistance Aromatic mineral oils (IRM 903 oil)
Fuels
Aromatic hydrocarbons with low molecular weights
(benzene, toluene)
Temperature range -70°C/+175°C
HNBR (Hydrogenated Nitrile Butadiene Rubber)

This HNBR-based rubber is obtained through selective hydrogenation of the NBR's butadiene groups. It is commonly used for power-assisted steering and for air conditioning.

Chemical resistance Aliphatic hydrocarbons
Mineral and vegetable oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, saline solutions and bases for operation at an average temperature
Water and steam up to +150°C
Atmospheric and ozone agents
Compatibility issue Chlorinated hydrocarbons
Polar solvents (ketones, esters and ethers)
Strong acids
Temperature range -30°C / +150°C (short-term peak at +160°C)
-40°C / +150°C with particular HNBRs
NBR (Nitrile Butadiene Rubber)

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C / +100°C (short-term peak at +120°C)
-40°C / +100°C with particular NBRs
VMQ (silicone rubber: methyl vinyl polysiloxane)

This FVMQ-based rubber is very often used in fuel systems.

Chemical resistance Animal and vegetable oils and greases
Water for operation at an average temperature
Diluted saline solutions
Atmospheric and ozone agents
Compatibility issue Superheated steam up to +120°C
Chlorinated hydrocarbons with a low molecular weight (trichlorethylene)
Aromatic hydrocarbons (benzene, toluene)
Temperature range -60°C / +200°C (short-term peak at +230°C)

The table below gives an overview of the physical, chemical and mechanical characteristics for each of the materials.

Characteristics/Materials ACM AEM CR EPDM FFKM FKM FVMQ HNBR NBR VMQ
Abrasion resistant 2 3 2 2 4 2 4 2 2 4
Resistance to acids 4 3 2 2 1 1 3 1 3 3
Chemical resistance 4 2 2 1 1 1 1 2 2 2
Resistance to cold 4 2 2 2 3 4 2 2 2 2
Dynamic properties 3 3 3 2 3 2 4 1 2 4
Electrical properties 3 3 3 2 1 4 1 3 3 1
Flame resistant 4 4 2 4 1 1 2 4 4 3
Heat resistant 1 1 2 2 1 1 1 1 2 1
Sealing water 1 1 2 2 2 2 4 2 2 4
Oil resistant 1 3 2 4 1 1 2 1 1 2
Ozone resistant 1 1 2 1 1 1 1 2 4 1
Tearing resistant 2 3 3 1 4 3 4 2 2 4
Traction resistant 3 2 2 1 2 1 3 1 2 4
Water/vapour resistant 4 4 3 1 2 3 3 1 2 3
Resistance to atmospheric agents 1 1 1 1 1 1 1 2 3 1

1. Excellent properties 2. Good properties 3. Average properties 4. Poor properties

Chemical compatibility

A "Chemical compatibility guide" catalogue can be downloaded from the Documentation section. You can also use our online "Chemical compatibility" tool free of charge.

These two tools give you the option of measuring the behaviour of our materials that come into contact with the majority of existing fluids. The data displayed is the result of rigorous testing of the ambient temperature and in consultation with previous publications. Test results are not fully representative due to the specific features of your application. The tests performed actually do not consider additives and impurities that may exist under the actual conditions of use, nor the potential elevation of temperatures. Other parameters can also alter the behaviour of our materials, such as the hardness, persistence, abrasion, etc. We therefore recommend performing your own tests to verify the compatibility of our materials according to your specific application. Our technical team can provide you with any additional information.

Housing design

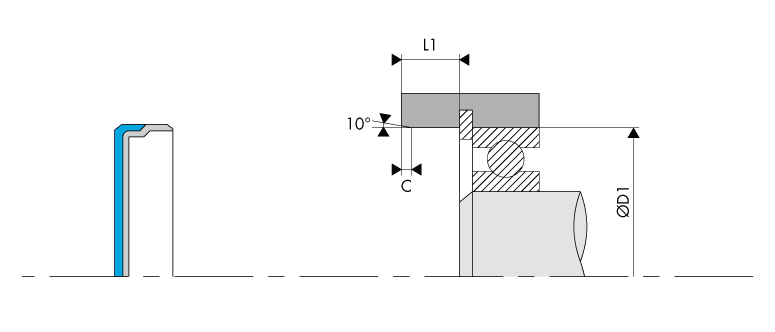

Housing Groove Cover seal - EBC

Chamfers

Groove width
L1
Chamfer
C
4.00 - 5.00 1.00
6.00 - 7.00 1.30
8.00 - 9.50 1.50
10.00 - 11.00 1.80
12.00 - 15.00 2.00
50 dimensions found
800.BC01005
Standard request
10,00 5,00
800.BC02205
Standard request
22,00 5,00
800.BC02207
Standard request
22,00 7,00
800.BC02407
Standard request
24,00 7,00
800.BC02807
Standard request
28,00 7,00
800.BC03006
Standard request
30,00 6,00
800.BC03007
Standard request
30,00 7,00
800.BC03008
Standard request
30,00 8,00
800.BC03208
Standard request
32,00 8,00
800.BC03508
Standard request
35,00 8,00
800.BC03707
Standard request
37,00 7,00
800.BC03710
Standard request
37,00 10,00
800.BC04005
Standard request
40,00 5,00
800.BC04007
Standard request
40,00 7,00
800.BC04207
Standard request
42,00 7,00
800.BC04707
Standard request
47,00 7,00
800.BC04710
Standard request
47,00 10,00
800.BC05207
Standard request
52,00 7,00
800.BC05210
Standard request
52,00 10,00
800.BC05507
Standard request
55,00 7,00
800.BC05508
Standard request
55,00 8,00
800.BC05501
Standard request
55,00 10,00
800.BC06208
Standard request
62,00 8,00
800.BC06510
Standard request
65,00 10,00
800.BC06808
Standard request
68,00 8,00
800.BC07008
Standard request
70,00 8,00
800.BC07209
Standard request
72,00 9,00
800.BC07507
Standard request
75,00 7,00
800.BC08008
Standard request
80,00 8,00
800.BC08012
Standard request
80,00 12,00
800.BC08510
Standard request
85,00 10,00
800.BC08512
Standard request
85,00 12,00
800.BC09012
Standard request
90,00 12,00
800.BC09512
Standard request
95,00 12,00
800.BC10012
Standard request
100,00 12,00
800.BC11012
Standard request
110,00 12,00
800.BC11512
Standard request
115,00 12,00
800.BC12012
Standard request
120,00 12,00
800.BC12512
Standard request
125,00 12,00
800.BC13012
Standard request
130,00 12,00
800.BC14015
Standard request
140,00 15,00
800.BC14512
Standard request
145,00 12,00
800.BC15015
Standard request
150,00 15,00
800.BC16015
Standard request
160,00 15,00
800.BC17015
Standard request
170,00 15,00
800.BC20013
Standard request
200,00 13,00
800.BC21015
Standard request
210,00 15,00
800.BC22514
Standard request
225,00 14,00
800.BC23014
Standard request
230,00 14,00
800.BC24015
Standard request
240,00 15,00
