BECA 010 SC

BECA 010 SC
BECA 010 SC

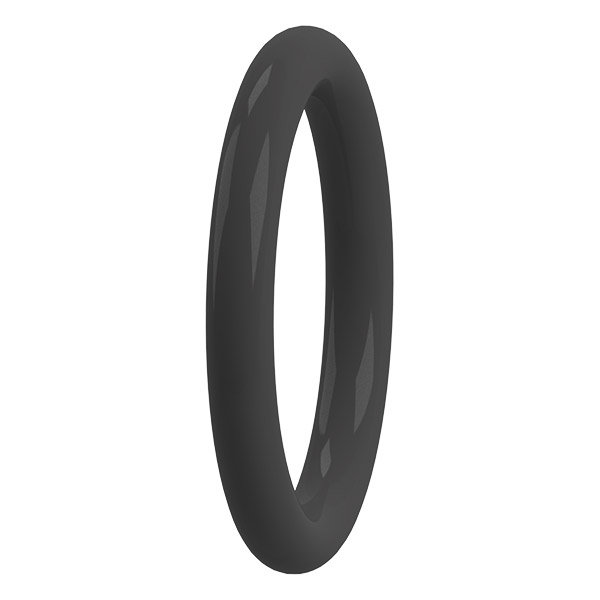

beca_010-SC_3d_v1

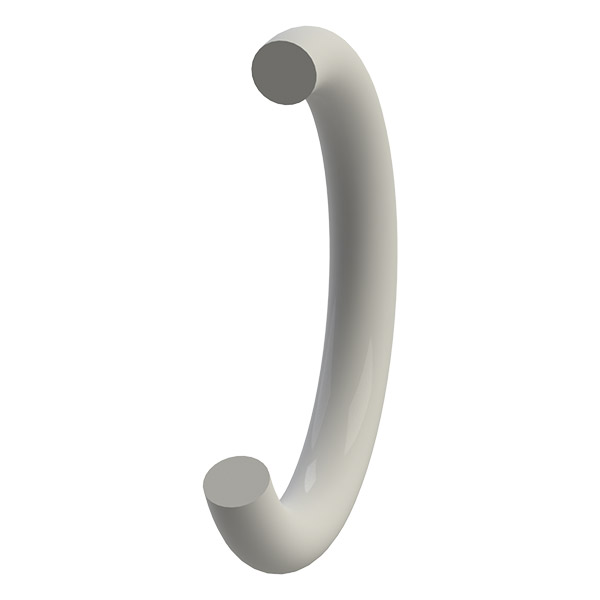

beca_010-SC_3d_v2

Description

The BECA 010 SC profile is an O'Ring used for sterile fittings, in line with standard DIN 11866, Series C

Technical data

Materials

O'Ring

CR
Peroxyde EPDM
FKM
NBR
Virgin PTFE
VMQ
NBR

Dimensions

Dimensions

Installation drawingLogement Gorge Joint alimentaire sanitaire - Housing Groove Sanitary seals - BECA 010 SC
8 dimensions found
010.SC012
Standard request
1/2" 12,00 +/-0,21 3,50 +/-0,10
010.SC018
Standard request
3/4" 18,00 +/-0,25 3,50 +/-0,10
010.SC024
Standard request
1" 24,00 +/-0,29 3,50 +/-0,10
010.SC037
Standard request
1 1/2" 37,00 +/-0,39 5,00 +/-0,13
010.SC050
Standard request
2" 50,00 +/-0,48 5,00 +/-0,13
010.SC062
Standard request
2 1/2" 62,00 +/-0,56 5,00 +/-0,13
010.SC075
Standard request
3" 75,00 +/-0,66 5,00 +/-0,13
010.SC100
Standard request
4" 100,00 +/-0,83 5,00 +/-0,13
