Face seals - Floating seals

Joints à glace - Face seals - Floating seals - 420 x 185

Go to the rotary seals selector

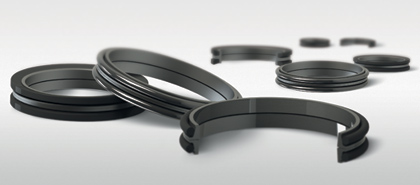

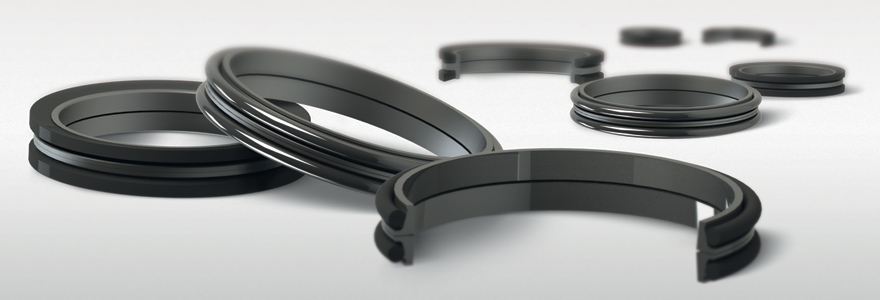

Floating seals



The face seals - floating seals are characterised by two identical metal friction rings mounted one on top of the other and centred in their groove by two rubber components that exercise a uniform axial pressure between the seal and the housing. The first metal ring remains static in its housing while the other, in rotation, ensures the sealing by creating friction between the two components in contact.

BECA 830
View the family
BECA 830
BECA 830
Materials: Steel/Cast iron + Rubber
Temperature:

-60°C / +180°C

Pressure:

0,15 to 0,50 MPa

Speed:

up to 10 m/s

BECA 831
View the family
BECA 831
BECA 831
Materials: Steel/Cast iron + Rubber
Temperature:

-60°C / +180°C

Pressure:

0,15 to 0,30 MPa

Speed:

up to 10 m/s
