BECA 587
BECA 587
![BECA 587](/media/beca_587_profil__087420100_1640_28082014.gif)
![beca_587_3d_v1](/media/thumbnails/beca_587_3d_v1__024864200_1601_05062015.jpg)
![beca_587_3d_v2](/media/thumbnails/beca_587_3d_v2__096511800_1601_05062015.jpg)
Description
The BECA 587 profile is a polyurethane pneumatic piston seal.
Technical data
Temperature | -30°C/+110°C |
---|---|
Pressure | 1.6 MPa |
Speed | 1 m/s |
Medias | Lubricated air |
Applications
Shock absorbers
Distributor
Standard cylinders
Materials
PU 93 Shore A - Blue
PU 96 Shore A - Blue
High temp. PU 96 Shore A - Beige
Dimensions
Materials
Technical data
Dimensions

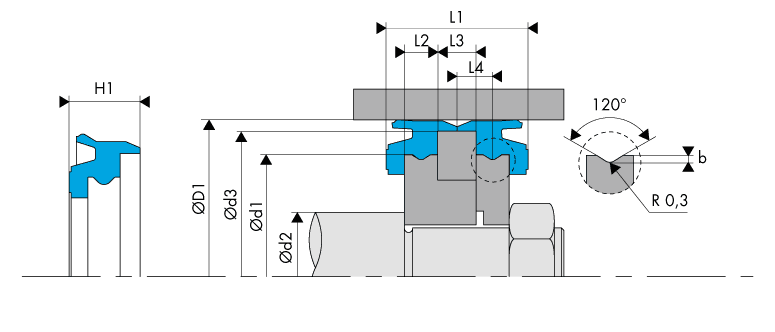

Installation drawing![Logement Gorge Joint de piston pneumatique - Housing Groove Pneumatic piston seal - BECA 587](/media/schema_implantation_joint_de_piston_beca_587__009123800_1633_28082014.gif)
![Logement Gorge Joint de piston pneumatique - Housing Groove Pneumatic piston seal - BECA 587](/media/schema_implantation_joint_de_piston_beca_587__009123800_1633_28082014.gif)
Materials
PU
Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.
Chemical resistance | Pure aliphatic hydrocarbons (propane, butane) Mineral oils and greases Silicone oils and greases Water up to +50°C |
---|---|
Compatibility issue | Ketones, esters, ethers, alcohols and glycols Hot water, steam, alkalis, amines and acids |
Temperature range | -30°C/+90°C -30°C / +110°C with our special PU |
Technical data
Surface roughness
Roughness | Dynamic surface area | Static surface area | Groove flanks |
---|---|---|---|
Ra | 0.1 - 0.4 µm | ≤ 1.6 µm | ≤ 3.2 µm |
Rz | 0.63 - 2.5 µm | ≤ 6.3 µm | ≤ 10.0 µm |
Rmax | 1.0 - 4.0 µm | ≤ 10.0 µm | ≤ 16.0 µm |
Only on request
