The BECA 470 profile is a vulcanised NBR single acting wiper seal on a metal cage.

Advantages

Economic solution
Tight and precise fitting in the housing
Good external wiping effect

Technical data

Temperature

-30°C/+100°C

Speed

1 m/s

Medias

Mineral hydraulic oils
Fire-resistant liquids
Biocompatible fluids
Water
Others (contact our experts)

Applications

Agriculture
Mobile machinery
Material handling - Lifting
Hydraulic cylinders

Materials

Profiled seal

NBR 90 Shore A

Metal cage

Steel

Dimensions
Materials
Technical data

Dimensions

470.0060133, 470.0080154, 470.0080165, 470.0100162, 470.0100163, 470.0100185, 470.0100205, 470.0120183, 470.0120184, 470.0120185, 470.0120204, 470.0120225, 470.0120227, 470.0130204, 470.0140203, 470.0140204, 470.0140223, 470.0140247, 470.0140255, 470.0140257, 470.0150255, 470.0150257, 470.0160223, 470.0160224, 470.0160243, 470.0160265, 470.0160267, 470.0180265, 470.0180285, 470.0180287, 470.0180355, 470.0200264, 470.0200265, 470.0200274, 470.0200283, 470.0200285, 470.0200304, 470.0200305, 470.0200307, 470.0200327, 470.0200357, 470.0210283, 470.0220285, 470.0220305, 470.0220325, 470.0220327, 470.0220355, 470.0220357, 470.0220385, 470.0240325, 470.0240357, 470.0240377, 470.0250315, 470.0250355, 470.0250357, 470.0250376, 470.0260345, 470.0280365, 470.0280385, 470.0280387, 470.0280407, 470.0300405, 470.0300407, 470.0300427, 470.0300455, 470.0300457, 470.0320404, 470.0320405, 470.0320407, 470.0320425, 470.0320427, 470.0320454, 470.0320455, 470.0320457, 470.0330437, 470.0350415, 470.0350455, 470.0350457, 470.0350477, 470.0350527, 470.0360455, 470.0360457, 470.0360465, 470.0360467, 470.0370475, 470.0380453, 470.0380487, 470.0380535, 470.0400503, 470.0400505, 470.0400507, 470.0400525, 470.0400527, 470.0400535, 470.0420527, 470.0440555, 470.0450535, 470.0450555, 470.0450557, 470.0450577, 470.0450607, 470.0480607, 470.0500565, 470.0500605, 470.0500607, 470.0500655, 470.0500657, 470.0520627, 470.0550637, 470.0550655, 470.0550657, 470.0550687, 470.0550707, 470.0560655, 470.0560657, 470.0560665, 470.0560667, 470.0600685, 470.0600705, 470.0600707, 470.0600745, 470.0600757, 470.0610727, 470.0620727, 470.0630727, 470.0630736, 470.0630737, 470.0630757, 470.0650757, 470.0700805, 470.0700806, 470.0700807, 470.0720827, 470.0750857, 470.0750875, 470.0750877, 470.0780887, 470.0800887, 470.0800907, 470.0800947, 470.0820927, 470.0850957, 470.0901007, 470.0951057, 470.1001107, 470.1001159, 470.1051157, 470.1081207, 470.1101207, 470.1101259, 470.1151257, 470.1201307, 470.1251357, 470.1251409, 470.1251419, 470.1301407, 470.1301457, 470.1301459, 470.1351507, 470.1351509, 470.1401507, 470.1401559, 470.1451609, 470.1451650, 470.1451709, 470.1501659, 470.1601759, 470.1651809, 470.1701859, 470.1701850, 470.1751900, 470.1801950, 470.1852000, 470.2002159, 470.2002200, 470.2002202, 470.2102300, 470.2102302, 470.2202402, 470.2502702, 470.2753002, 470.2803002, 470.3103406, 470.3203402, 470.3603802, 470.3904206, 470.4004202, 470.4905206

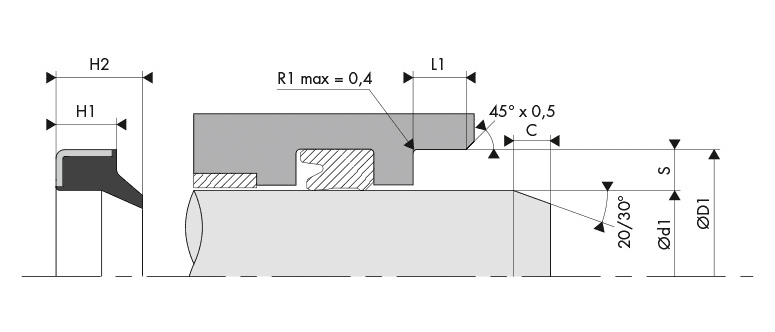

Installation drawingLogement Gorge Joint racleur - Housing Groove Gland Wiper scraper seal BECA 470

Materials

Metal cage

The table below shows the materials that we can offer for metal cages and springs.

Application Material Standard Characteristics
Metal cage Non-alloy standard steel AISI 1010
(DIN 1624)
Cold rolled steel
Metal cage Nickel chrome steel AISI 304
(DIN 1.4301 - V2A)
Standard stainless steel

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C/+100°C
-40°C / +100°C with our low-temperature NBR



Technical data

Housing Groove Gland Wiper Scraper Seal - BECA 470

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfer

The chamfer length as well as the chamfer angle are determined by the rod seal.

188 dimensions found
