BECA 336

BECA 336
beca_336_3d_v1
beca_336_3d_v2

Description

The BECA 336 profile is a U-ring type single acting piston seal with asymmetrical polyurethane lips.

Advantages

Optimised sealing effect at both high and low pressures
Excellent abrasion and wear resistance
Assembly by deformation in closed groove

Technical data

Temperature

-30°C/+110°C

Pressure

40 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils

Applications

Mobile machinery
Injection presses
Machine tools
Presses
Hydraulic cylinders

Materials

Profiled seal

PU 93 Shore A - Blue
PU 96 Shore A - Blue
High temp. PU 96 Shore A - Beige

Dimensions
Materials
Technical data

Dimensions

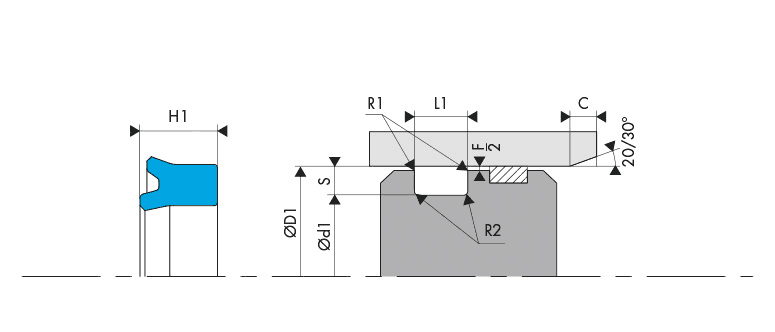

Installation drawingLogement Gorge Joint de piston - Housing Groove Gland Piston seal BECA 336

Materials

PU

Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.

Chemical resistance Pure aliphatic hydrocarbons (propane, butane)
Mineral oils and greases
Silicone oils and greases
Water up to +50°C
Compatibility issue Ketones, esters, ethers, alcohols and glycols
Hot water, steam, alkalis, amines and acids
Temperature range -30°C/+90°C
-30°C / +110°C with our PUHT (short term peak at 150°C)

Technical data

Housing Groove Gland Piston Seal - BECA - 336

Extrusion gaps

Bore diameter
ØD1
Radial extrusion gap
F/2
≤ 5 MPa ≤ 10 MPa ≤ 20 MPa ≤ 30 MPa ≤ 40 MPa
≤ 60 mm 0.40 0.30 0.20 0.15 0.10
> 60 mm 0.50 0.40 0.30 0.20 0.15

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
3.00 0.20 0.40 2.00
4.00 0.20 0.40 2.50
5.00 0.40 0.60 3.00
7.50 0.80 1.00 4.00
10.00 0.80 1.00 5.00
130 dimensions found
336.0060294
Standard request
6,00 2,90 4,00 4,50
336.0120055
Standard request
12,00 5,00 5,50 6,00
336.0140094
Standard request
14,00 9,00 4,00 5,00
336.0150103
Standard request
15,00 10,00 3,00 4,00
336.0160104
Standard request
16,00 10,00 3,80 4,20
336.0100186
Standard request
18,00 10,00 6,00 7,00
336.0220144
Standard request
22,00 14,00 4,00 4,50
336.2251456
Standard request
22,50 14,50 6,00 7,00
336.0230174
Standard request
23,00 17,00 4,00 4,50
336.0240148
Standard request
24,00 14,00 8,00 9,00
336.0240166
Standard request
24,00 16,00 6,00 7,00
336.0250155
Standard request
25,00 15,00 5,80 6,30
336.0250158
Standard request
25,00 15,00 8,00 9,00
336.0250174
Standard request
25,00 17,00 4,00 4,50
336.0250176
Standard request
25,00 17,00 5,70 6,30
336.0260185
Standard request
26,00 18,00 5,50 6,50
336.0280186
Standard request
28,00 18,00 6,30 7,00
336.0300206
Standard request
30,00 20,00 6,00 7,00
336.0300208
Standard request
30,00 20,00 8,00 9,00
336.0300226
Standard request
30,00 22,00 6,40 7,00
336.3012066
Standard request
30,16 20,63 6,35 7,35
336.3220663
Standard request
32,00 20,63 6,35 7,35
336.0320228
Standard request
32,00 22,00 8,00 9,00
336.0320244
Standard request
32,00 24,00 4,00 4,50
336.0340248
Standard request
34,00 24,00 8,50 9,50
336.0350258
Standard request
35,00 25,00 8,00 9,00
336.0350274
Standard request
35,00 27,00 4,00 4,50
336.0350278
Standard request
35,00 27,00 8,00 9,00
336.0380251
Standard request
38,00 25,00 10,00 11,00
336.0380308
Standard request
38,00 30,00 8,00 9,00
336.3083896
Standard request
38,90 30,80 6,00 7,00
336.0390316
Standard request
39,00 31,00 6,10 6,30
336.0400308
Standard request
40,00 30,00 7,30 8,00
336.0400301
Standard request
40,00 30,00 10,00 11,00
336.0400327
Standard request
40,00 32,00 6,50 7,20
336.0400328
Standard request
40,00 32,00 8,00 9,00
336.0400338
Standard request
40,00 33,00 8,00 9,00
336.0410301
Standard request
41,00 30,00 10,00 11,00
336.0430308
Standard request
43,00 30,00 8,00 9,00
336.0330406
Standard request
44,00 33,00 6,00 7,00
336.0440341
Standard request
44,00 34,00 10,00 11,00
336.0445267
Standard request
44,50 26,50 7,70 8,20
336.0450309
Standard request
45,00 30,00 9,00 10,00
336.0450301
Standard request
45,00 30,00 10,00 11,00
336.0450358
Standard request
45,00 35,00 7,50 8,00
336.0460341
Standard request
46,00 34,00 10,50 12,00
336.0315483
Standard request
48,00 31,50 12,50 13,50
336.0500351
Standard request
50,00 35,00 10,00 11,00
336.0500405
Standard request
50,00 40,00 5,00 6,00
336.0400505
Standard request
50,00 40,00 5,70 6,30
336.0500406
Standard request
50,00 40,00 6,30 7,00
336.0500407
Standard request
50,00 40,00 7,00 8,00
336.0500401
Standard request
50,00 40,00 10,00 11,00
336.0420506
Standard request
50,00 42,00 6,00 7,00
336.5084087
Standard request
50,80 40,80 7,00 8,00
336.5084127
Standard request
50,80 41,27 6,35 6,80
336.0520421
Standard request
52,00 42,00 10,00 11,00
336.0450356
Standard request
53,00 45,00 6,70 7,70
336.0550352
Standard request
55,00 35,00 12,00 13,00
336.0550456
Standard request
55,00 45,00 6,00 7,00
336.0550451
Standard request
55,00 45,00 10,00 11,00
336.0600506
Standard request
60,00 50,00 6,00 7,00
336.0600507
Standard request
60,00 50,00 7,20 8,00
336.0600501
Standard request
60,00 50,00 10,00 11,00
336.0520626
Standard request
62,00 52,00 6,00 7,00
336.0630489
Standard request
63,00 48,00 9,00 10,00
336.0500637
Standard request
63,00 50,00 7,00 8,00
336.0630537
Standard request
63,00 53,00 7,00 8,00
336.0630532
Standard request
63,00 53,00 12,00 13,00
336.0630555
Standard request
63,00 55,00 5,70 6,00
336.0630576
Standard request
63,00 57,00 5,00 6,00
336.6475206
Standard request
64,77 52,07 6,93 7,93
336.0650452
Standard request
65,00 45,00 12,00 13,00
336.0650453
Standard request
65,00 45,00 13,70 14,50
336.0650528
Standard request
65,00 52,00 8,50 9,50
336.0526510
Standard request
65,00 52,20 10,00 11,00
336.0650553
Standard request
65,00 55,00 13,50 14,50
336.6507528
Standard request
65,07 52,37 8,70 9,50
336.0550709
Standard request
70,00 55,00 9,00 10,00
336.0700606
Standard request
70,00 60,00 6,00 7,00
336.0700607
Standard request
70,00 60,00 7,00 8,00
336.0700602
Standard request
70,00 60,00 12,00 13,00
336.0730571
Standard request
73,00 57,00 10,00 11,00
336.0550752
Standard request
75,00 55,00 12,00 13,00
336.0750601
Standard request
75,00 60,00 9,00 10,00
336.0760681
Standard request
76,00 68,00 10,00 11,00
336.0580800
Standard request
80,00 58,00 10,00 11,00
336.0800604
Standard request
80,00 60,00 13,50 14,50
336.0800650
Standard request
80,00 65,00 10,00 11,00
336.6080070
Standard request
80,00 70,00 6,00 7,00
336.0800706
Standard request
80,00 70,00 6,80 7,50
336.0800707
Standard request
80,00 70,00 7,20 7,50
336.0800701
Standard request
80,00 70,00 9,00 10,00
336.0800702
Standard request
80,00 70,00 12,00 13,00
336.0720801
Standard request
80,00 71,80 10,00 11,00
336.8286342
Standard request
82,80 63,40 11,60 12,60
336.0700859
Standard request
85,00 70,00 9,00 10,00
336.0900702
Standard request
90,00 70,00 12,00 13,00
336.0900752
Standard request
90,00 75,00 12,00 13,00
336.0980842
Standard request
98,00 84,00 12,00 13,00
