BECA 007 Rod

BECA 007 Rod
BECA 007
beca_007_3d_v1
beca_007_3d_v2

Description

The BECA 007 Rod profile is a machined guide ring or wear ring with a 30° angle cut as standard, made from glass-filled POM. Other types of cuts can be made.

Advantages

Great compression resistance
Great wear resistance
Water absorption limited to 0.2%
Good stiffness

Technical data

Temperature

-50°C / +115°C (+140°C peak)

Speed

1 m/s

Max. compression resistance

170 N/mm²

Radial loads in dynamic applications

40 N/mm² at 25°C
25 N/mm² > 60°C

Applications

Lifting trucks
Construction equipment
Agricultural machinery
Standard cylinders

Materials

Polyoxymethylene - POM

Dimensions
Installation dimensions
Materials
Design guidelines
Technical data

Dimensions

007.0081114, 007.0101314, 007.0121514, 007.0141714, 007.0151814, 007.0161914, 007.0182114, 007.0202314, 007.0222514, 007.0252814, 007.0250305, 007.0273014, 007.0270325, 007.0283114, 007.0280335, 007.0303314, 007.0300355, 007.0300359, 007.0323514, 007.0320375, 007.0320379, 007.0333614, 007.0330385, 007.0330389, 007.0353814, 007.0350405, 007.0350409, 007.0363914, 007.0360415, 007.0360419, 007.0374014, 007.0370425, 007.0370429, 007.0384114, 007.0380435, 007.0380439, 007.0404314, 007.0400455, 007.0400459, 007.0414414, 007.0410465, 007.0410469, 007.0424514, 007.0420475, 007.0420479, 007.0454814, 007.0450505, 007.0450509, 007.0485114, 007.0480535, 007.0480539, 007.0505314, 007.0500555, 007.0500559, 007.0520575, 007.0520579, 007.0550605, 007.0550609, 007.0580635, 007.0580639, 007.0600655, 007.0600659, 007.0610665, 007.0610669, 007.0630685, 007.0630689, 007.0650705, 007.0650709, 007.0680735, 007.0680739, 007.0700755, 007.0700759, 007.0720779, 007.0750809, 007.0780839, 007.0800859, 007.0800851, 007.0850909, 007.0850901, 007.0900959, 007.0900951, 007.0951009, 007.0951001, 007.1001059, 007.1001051, 007.1051109, 007.1051101, 007.1101159, 007.1101151, 007.1151209, 007.1151201, 007.1201259, 007.1201251, 007.1251309, 007.1251301, 007.1301359, 007.1301351, 007.1351409, 007.1351401, 007.1401459, 007.1401451, 007.1451509, 007.1451501, 007.1501559, 007.1501551, 007.1551609, 007.1551601, 007.1601659, 007.1601651, 007.1651709, 007.1651701, 007.1701759, 007.1701751, 007.1751809, 007.1751801, 007.1801859, 007.1801851, 007.1851909, 007.1851901, 007.1901959, 007.1901951, 007.1952009, 007.1952001, 007.2002059, 007.2002051, 007.2002052, 007.2052101, 007.2052102, 007.2102151, 007.2102152, 007.2152201, 007.2152202, 007.2202251, 007.2202252, 007.2252301, 007.2252302, 007.2302351, 007.2302352, 007.2352401, 007.2352402, 007.2402451, 007.2402452, 007.2452501, 007.2452502, 007.2502551, 007.2502552, 007.2552601, 007.2552602, 007.2602651, 007.2602652, 007.2652701, 007.2652702, 007.2702751, 007.2702752, 007.2752801, 007.2752802, 007.2802851, 007.2802852, 007.2852901, 007.2852902, 007.2902951, 007.2902952, 007.2953001, 007.2953002, 007.3003051, 007.3003052, 007.3053101, 007.3053102, 007.3103151, 007.3103152, 007.3153201, 007.3153202, 007.3203251, 007.3203252, 007.3253301, 007.3253302, 007.3303351, 007.3303352, 007.3353401, 007.3353402, 007.3403451, 007.3403452, 007.3453501, 007.3453502, 007.3503551, 007.3503552, 007.3603651, 007.3603652

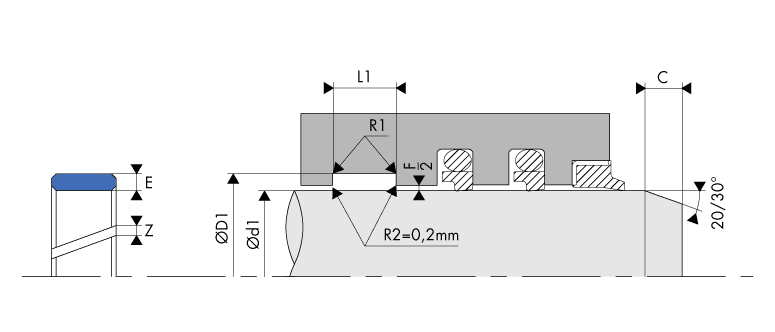

Installation drawingLogement Gorge Bague de guidage Porteur Segment - BECA 007 Tige - Housing Groove Wear ring - BECA 007 Rod

Installation dimensions

Housing Groove Wear ring Guide ring Guide seal - BECA 007 Rod

Installation dimensions

ISO 10766 Rod diameter Groove diameter Groove width Seal thickness Gap
Ød1 f8/h9 ØD1 H8 L1 0/+0.20 E Z +/-0.50
* 10.0 - 50.0 d1 + 3.10 4.00 1.55 1.00
* 15.0 - 140.0 d1 + 5.00 5.60 2.50 1.25
* 20.0 - 220.0 d1 + 5.00 9.70 2.50 1.25
* 80.0 - 360.0 d1 + 5.00 15.00 2.50 1.25
* 200.0 - 360.0 d1 + 5.00 25.00 2.50 1.25
* 280.0 - 360.0 d1 + 8.00 25.00 4.00 2.00

Other dimensions are possible, not taking ISO 10766 into consideration. Please contact our experts.

Materials

Polyoxymethylene - POM

Polyoxymethylene (POM or polyacetal) belongs to the thermoplastics, which have a number of advantages - strong mechanical resistance, good creep strength, high resistance to shocks, particularly at low temperatures, good wear resistance, good sliding coefficient, excellent machinability and good dielectric properties. The low water absorption coefficient, unlike polyamide (PA), also gives this material an excellent dimensional stability.

Chemical resistance

Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Water

Compatibility issue Acids
Temperature range -50°C/+115°C

Design guidelines

Guide sizing

The following formulas calculate the height "H" of the rod guide holder while taking account of the gap "Z" necessary at the ends of the ring after fitting. This gap "Z" offsets the thermal expansion under the effects of temperature, and prevents intermediate pressures and drag pressures in the system.

H = (F x f) / (Ød1 x Cr)

where:

H = Min. height of the guide (mm)
F = Max. radial force (N)
f = Safety coefficient (we recommend 2)
Ød1 = Rod diameter (mm)
Cr = Permissible radial load in dynamic applications (N/mm²)

Types of cuts

The wear rings are made with a 30° angle cut as standard. Other types of cuts can be made on request, as shown in the diagram below.

Types of cuts for wear rings and guide strips

Technical data

Housing Groove Wear ring Guide ring Guide seal - BECA 007 Rod

Extrusion gaps

Rod diameter
Ød1
Radial extrusion gap
F/2
8.0 - 20.0 0.20 0.30
21.0 - 100.0 0.25 0.40
101.0 - 250.0 0.30 0.60
251.0 - 300.0 0.40 0.80
301.0 - 500.0 0.40 0.80

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Radius

Rod diameter
Ød1
Radius
R1
≤ 250.0 0.20
> 250.0 0.40
188 dimensions found
007.0081114
Standard request
8,00 11,10 4,00 1,55
007.0101314
Standard request
10,00 13,10 4,00 1,55
007.0121514
Standard request
12,00 15,10 4,00 1,55
007.0141714
Standard request
14,00 17,10 4,00 1,55
007.0151814
Standard request
15,00 18,10 4,00 1,55
007.0161914
Standard request
16,00 19,10 4,00 1,55
007.0182114
Standard request
18,00 21,10 4,00 1,55
007.0202314
Standard request
20,00 23,10 4,00 1,55
007.0222514
Standard request
22,00 25,10 4,00 1,55
007.0252814
Standard request
25,00 28,10 4,00 1,55
007.0250305
Standard request
25,00 30,00 5,60 2,50
007.0273014
Standard request
27,00 30,10 4,00 1,55
007.0270325
Standard request
27,00 32,00 5,60 2,50
007.0283114
Standard request
28,00 31,10 4,00 1,55
007.0280335
Standard request
28,00 33,00 5,60 2,50
007.0303314
Standard request
30,00 33,10 4,00 1,55
007.0300355
Standard request
30,00 35,00 5,60 2,50
007.0300359
Standard request
30,00 35,00 9,70 2,50
007.0323514
Standard request
32,00 35,10 4,00 1,55
007.0320375
Standard request
32,00 37,00 5,60 2,50
007.0320379
Standard request
32,00 37,00 9,70 2,50
007.0333614
Standard request
33,00 36,10 4,00 1,55
007.0330385
Standard request
33,00 38,00 5,60 2,50
007.0330389
Standard request
33,00 38,00 9,70 2,50
007.0353814
Standard request
35,00 38,10 4,00 1,55
007.0350405
Standard request
35,00 40,00 5,60 2,50
007.0350409
Standard request
35,00 40,00 9,70 2,50
007.0363914
Standard request
36,00 39,10 4,00 1,55
007.0360415
Standard request
36,00 41,00 5,60 2,50
007.0360419
Standard request
36,00 41,00 9,70 2,50
007.0374014
Standard request
37,00 40,10 4,00 1,55
007.0370425
Standard request
37,00 42,00 5,60 2,50
007.0370429
Standard request
37,00 42,00 9,70 2,50
007.0384114
Standard request
38,00 41,10 4,00 1,55
007.0380435
Standard request
38,00 43,00 5,60 2,50
007.0380439
Standard request
38,00 43,00 9,70 2,50
007.0404314
Standard request
40,00 43,10 4,00 1,55
007.0400455
Standard request
40,00 45,00 5,60 2,50
007.0400459
Standard request
40,00 45,00 9,70 2,50
007.0414414
Standard request
41,00 44,10 4,00 1,55
007.0410465
Standard request
41,00 46,00 5,60 2,50
007.0410469
Standard request
41,00 46,00 9,70 2,50
007.0424514
Standard request
42,00 45,10 4,00 1,55
007.0420475
Standard request
42,00 47,00 5,60 2,50
007.0420479
Standard request
42,00 47,00 9,70 2,50
007.0454814
Standard request
45,00 48,10 4,00 1,55
007.0450505
Standard request
45,00 50,00 5,60 2,50
007.0450509
Standard request
45,00 50,00 9,70 2,50
007.0485114
Standard request
48,00 51,10 4,00 1,55
007.0480535
Standard request
48,00 53,00 5,60 2,50
007.0480539
Standard request
48,00 53,00 9,70 2,50
007.0505314
Standard request
50,00 53,10 4,00 1,55
007.0500555
Standard request
50,00 55,00 5,60 2,50
007.0500559
Standard request
50,00 55,00 9,70 2,50
007.0520575
Standard request
52,00 57,00 5,60 2,50
007.0520579
Standard request
52,00 57,00 9,70 2,50
007.0550605
Standard request
55,00 60,00 5,60 2,50
007.0550609
Standard request
55,00 60,00 9,70 2,50
007.0580635
Standard request
58,00 63,00 5,60 2,50
007.0580639
Standard request
58,00 63,00 9,70 2,50
007.0600655
Standard request
60,00 65,00 5,60 2,50
007.0600659
Standard request
60,00 65,00 9,70 2,50
007.0610665
Standard request
61,00 66,00 5,60 2,50
007.0610669
Standard request
61,00 66,00 9,70 2,50
007.0630685
Standard request
63,00 68,00 5,60 2,50
007.0630689
Standard request
63,00 68,00 9,70 2,50
007.0650705
Standard request
65,00 70,00 5,60 2,50
007.0650709
Standard request
65,00 70,00 9,70 2,50
007.0680735
Standard request
68,00 73,00 5,60 2,50
007.0680739
Standard request
68,00 73,00 9,70 2,50
007.0700755
Standard request
70,00 75,00 5,60 2,50
007.0700759
Standard request
70,00 75,00 9,70 2,50
007.0720779
Standard request
72,00 77,00 9,70 2,50
007.0750809
Standard request
75,00 80,00 9,70 2,50
007.0780839
Standard request
78,00 83,00 9,70 2,50
007.0800859
Standard request
80,00 85,00 9,70 2,50
007.0800851
Standard request
80,00 85,00 15,00 2,50
007.0850909
Standard request
85,00 90,00 9,70 2,50
007.0850901
Standard request
85,00 90,00 15,00 2,50
007.0900959
Standard request
90,00 95,00 9,70 2,50
007.0900951
Standard request
90,00 95,00 15,00 2,50
007.0951009
Standard request
95,00 100,00 9,70 2,50
007.0951001
Standard request
95,00 100,00 15,00 2,50
007.1001059
Standard request
100,00 105,00 9,70 2,50
007.1001051
Standard request
100,00 105,00 15,00 2,50
007.1051109
Standard request
105,00 110,00 9,70 2,50
007.1051101
Standard request
105,00 110,00 15,00 2,50
007.1101159
Standard request
110,00 115,00 9,70 2,50
007.1101151
Standard request
110,00 115,00 15,00 2,50
007.1151209
Standard request
115,00 120,00 9,70 2,50
007.1151201
Standard request
115,00 120,00 15,00 2,50
007.1201259
Standard request
120,00 125,00 9,70 2,50
007.1201251
Standard request
120,00 125,00 15,00 2,50
007.1251309
Standard request
125,00 130,00 9,70 2,50
007.1251301
Standard request
125,00 130,00 15,00 2,50
007.1301359
Standard request
130,00 135,00 9,70 2,50
007.1301351
Standard request
130,00 135,00 15,00 2,50
007.1351409
Standard request
135,00 140,00 9,70 2,50
007.1351401
Standard request
135,00 140,00 15,00 2,50
007.1401459
Standard request
140,00 145,00 9,70 2,50
