Description

The BECA 302 profile is a single acting compact seal composed of a profiled FKM seal. It can be assembled in a groove according to standard ISO 5597.

Advantages

Optimised sealing effect
Good chemical compatibility and wide temperature range, depending on the material chosen
Excellent wear resistance
Good extrusion resistance

Technical data

Temperature

-20°C/+200°C

Pressure

25 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils
Fire-resistant liquids
Biocompatible fluids
Water
Others (contact our experts)

Applications

Mobile machinery
Material handling - Lifting
Presses
Hydraulic cylinders

Materials

FKM 80 Shore A

Dimensions
Materials
Technical data

Dimensions

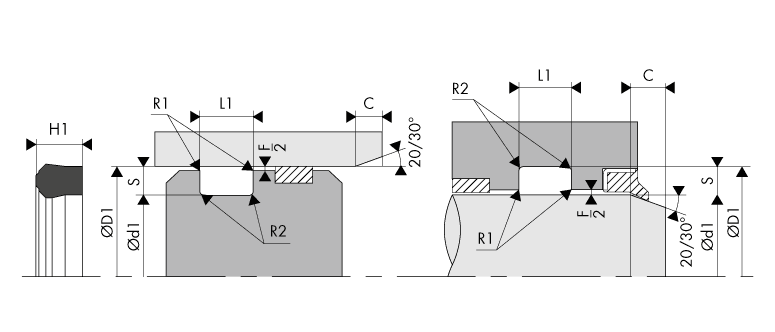

Installation drawingLogement Gorge Joint de tige / piston - Housing Groove Gland Rod / Piston seal BECA 302

Materials

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Fuel (including high alcohol content)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids
Ammonia gas
Organic acids with a low molecular weight (formic and acetic acids)
Temperature range -20°C/+200°C
-40°C / +200°C with our FKM GLT on request

Technical data

Housing Groove Gland Rod/Piston Seal - BECA 302

Extrusion gaps

Pressure
MPa
Radial extrusion gap
F/2
15 MPa 0.20
25 MPa 0.10

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
4.00 0.20 0.40 2.00
5.00 0.40 0.70 2.50
6.00 0.70 1.10 3.00
7.50 0.70 1.10 4.00
10.00 1.00 1.10 5.00
14 dimensions found
302.0250335
Standard request
25,00 33,00 5,70 6,30
302.6025033
Standard request
25,00 33,00 5,70 6,30
302.0250336
Standard request
25,00 33,00 6,40 7,00
302.028BBG6
Standard request
28,00 36,00 5,70 6,30
302.1035043
Standard request
35,00 43,00 5,37 6,30
302.6040048
Standard request
40,00 48,00 5,70 6,30
302.0450556
Standard request
45,00 55,00 6,00 7,00
302.1045055
Standard request
45,00 55,00 11,00 12,00
302.8050060
Standard request
50,00 60,00 7,50 8,00
302.0550656
Standard request
55,00 65,00 6,00 7,00
302.1060070
Standard request
60,00 70,00 7,20 8,00
302.0600717
Standard request
60,00 71,00 7,00 8,00
302.0650756
Standard request
65,00 75,00 6,00 7,00
301.80953G8
Standard request
80,00 95,00 12,00 13,00
