BECA 510

BECA 510
beca_510_3d_v1
beca_510_3d_v2

Description

The BECA 510 profile is a high-performing, double acting compact piston seal composed of two POM wear/back-up rings, a polyurethane friction ring for dynamic applications and a profiled pre-tightened NBR ring. It can be assembled in a groove according to standard ISO 6547.

Advantages

Excellent wear resistance
Very low compression set
Closed groove assembly

Technical data

Temperature

-30°C/+100°C

Pressure

40 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils

Applications

Mobile machinery
Lifting equipment
Hydraulic cylinders

Materials

Profiled seal

NBR 80 Shore A

Friction ring

PU 93 Shore A - Blue
PU 96 Shore A - Blue
High temp. PU 96 Shore A - Beige

Wear/back-up rings

Polyoxymethylene (POM)

Dimensions
Materials
Technical data

Dimensions

510.3025AP9, 510.3032AP9, 510.3040AP9, 510.3050AP9, 510.3063AP9, 510.3080AP9, 510.3100AP9, 510.3125AP9, 510.3140AP9, 510.3160AP9, 510.3180AP9, 510.3200AP9, 510.3250AP9, 510.3320AP9, 510.3400AP9, 510.3500AP9

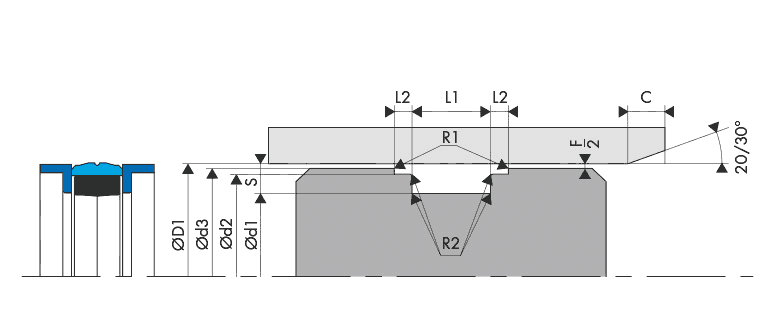

Installation drawingLogement Gorge Joint de piston - Housing Groove Gland Piston seal BECA 510

Materials

PU

Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.

Chemical resistance Pure aliphatic hydrocarbons (propane, butane)
Mineral oils and greases
Silicone oils and greases
Water up to +50°C
Compatibility issue Ketones, esters, ethers, alcohols and glycols
Hot water, steam, alkalis, amines and acids
Temperature range -30°C/+90°C
-30°C / +110°C with our PUHT (short term peak at 150°C)

NBR 80 Shore A

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C/+100°C

Polyoxymethylene - POM

Polyoxymethylene (POM or polyacetal) belongs to the thermoplastics, which have a number of advantages - strong mechanical resistance, good creep strength, high resistance to shocks, particularly at low temperatures, good wear resistance, good sliding coefficient, excellent machinability and good dielectric properties. The low water absorption coefficient, unlike polyamide (PA), also gives this material an excellent dimensional stability.

Chemical resistance

Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Water

Compatibility issue Acids
Temperature range -50°C/+115°C

Technical data

Housing Groove Gland Piston Seal - BECA - 510

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
4.00 0.40 0.40 2.50
5.00 0.40 0.40 3.00
7.50 0.40 0.40 4.50
10.00 0.80 0.80 5.50
15.00 0.80 0.80 8.00
16 dimensions found
510.3025AP9
Standard request
25,00 405,74 0/+0,10 24,00 10,00 4,00
510.3032AP9
Standard request
32,00 24,00 29,00 31,00 10,00 4,00
510.3040AP9
Standard request
40,00 32,00 37,00 39,00 10,00 4,00
510.3050AP9
Standard request
50,00 40,00 47,00 49,00 12,50 4,00
510.3063AP9
Standard request
63,00 53,00 60,00 62,00 12,50 4,00
510.3080AP9
Standard request
80,00 65,00 76,00 78,50 20,00 5,00
510.3100AP9
Standard request
100,00 85,00 96,00 98,50 20,00 5,00
510.3125AP9
Standard request
125,00 105,00 120,00 123,00 25,00 6,30
510.3140AP9
Standard request
140,00 120,00 135,00 138,00 25,00 6,30
510.3160AP9
Standard request
160,00 140,00 155,00 158,00 25,00 6,30
510.3180AP9
Standard request
180,00 150,00 172,00 178,00 36,00 12,50
510.3200AP9
Standard request
200,00 170,00 192,00 197,00 36,00 12,50
510.3250AP9
Standard request
250,00 220,00 242,00 247,00 36,00 12,50
510.3320AP9
Standard request
320,00 290,00 312,00 317,00 36,00 12,50
510.3400AP9
Standard request
400,00 360,00 392,00 397,00 50,00 16,00
510.3500AP9
Standard request
500,00 460,00 492,00 497,00 50,00 16,00
