BECA 230

BECA 230
beca_230_3d_v1
beca_230_3d_v2

Description

The BECA 230 profile is a U-ring type single acting rod seal with asymmetrical rubber lips.

Advantages

Optimised sealing effect
Excellent resistance to high temperatures depending on the type of material chosen
Assembly by deformation in closed groove

Technical data

Temperature

-30°C/+200°C

Pressure

15 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils
Fire-resistant liquids
Biocompatible fluids
Water
Others (contact our experts)

Applications

Mobile machinery
Machine tools
Presses
Standard cylinders

Materials

NBR 70 Shore A
NBR 85 Shore A
FKM 85 Shore A

Dimensions
Materials
Technical data

Dimensions

230.1006014, 230.0651254, 230.0701304, 230.0081284, 230.1008014, 230.0008016, 230.1008016, 230.1013623, 230.1010018, 230.1010020, 230.1012020, 230.0012022, 230.1012022, 230.0132326, 230.1014022, 230.1014024, 230.1016024, 230.1016026, 230.1018025, 230.1018026, 230.1018028, 230.0190255, 230.0020654, 230.1020027, 230.1020028, 230.1020030, 230.2022030, 230.1022032, 230.1025032, 230.1025033, 230.5025035, 230.7025035, 230.1025035, 230.0289454, 230.1028038, 230.1028043, 230.1030040, 230.1031041, 230.1032040, 230.1032042, 230.1032047, 230.2035045, 230.1035045, 230.1035055, 230.1036046, 230.1036051, 230.2040050, 230.1040050, 230.1040055, 230.1042050, 230.7045055, 230.2045055, 230.1045055, 230.1045060, 230.7050060, 230.2050060, 230.1050060, 230.1050065, 230.1054064, 230.1055063, 230.1055065, 230.1056071, 230.1056076, 230.1060070, 230.2060070, 230.1063078, 230.1063083, 230.0065075, 230.1067077, 230.2070080, 230.1070080, 230.1070085, 230.1070090, 230.2080090, 230.1080090, 230.1080095, 230.1080100, 230.2090100, 230.1090100, 230.1090105, 230.1090110, 230.1100120, 230.1100125, 230.1110125, 230.1110130, 230.1110135, 230.1125145, 230.1125150, 230.1140160, 230.1140165, 230.1145160, 230.1160185, 230.1160190, 230.1180205, 230.1180210, 230.1185200, 230.1200225, 230.1200230, 230.1220250, 230.1250280, 230.1280310, 230.1320360, 230.1360400

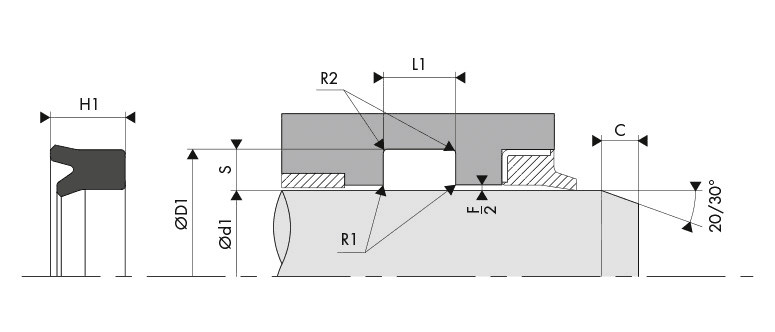

Installation drawingLogement Gorge Joint de tige - Housing Groove Gland Rod seal BECA 230

Materials

NBR

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C/+100°C
-40°C / +100°C with our low-temperature NBR

EPDM

As an Ethylene Propylene Diene Monomer copolymer, EPDM is a rubber commonly used for hot water taps, cooling systems, brake systems, dishwashers and washing machines.

Chemical resistance Hot water and steam up to +150°C
Glycol-based brake fluids (Dot 3 & 4) and silicone-based brake fluids (Dot 5)
Organic and inorganic acids
Cleaning agents, sodium and potassium alkalis
Hydraulic fluids (HFD-R)
Silicone oils and greases
Polar solvents (alcohols, ketones and esters)
Atmospheric and ozone agents
Compatibility issue Mineral oils and greases
Hydrocarbons
Low impermeability to gas
Temperature range -50°C/+150°C

FKM

Depending on their structure and fluorine content, the chemical resistance and resistance to the cold in fluororubbers can vary. This FKM-based rubber is very often used for high-temperature hydraulics and pneumatics, for industrial valves, injection/fuel systems, motor seals and high-vacuum systems.

Chemical resistance Mineral oils and greases, ASTM n°1, IRM 902 and IRM 903 oils.
Fire-resistant liquids (HFD)
Silicone oils and greases
Mineral and vegetable oils and greases
Aliphatic hydrocarbons (propane, butane, petroleum)
Aromatic hydrocarbons (benzene, toluene)
Chlorinated hydrocarbons (trichlorethylene)
Fuel (including high alcohol content)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids
Ammonia gas
Organic acids with a low molecular weight (formic and acetic acids)
Temperature range -20°C/+200°C
-40°C / +200°C with our FKM GLT on request

HNBR

This HNBR-based rubber is obtained through selective hydrogenation of the NBR's butadiene groups. It is commonly used for power-assisted steering and for air conditioning.

Chemical resistance Aliphatic hydrocarbons
Mineral and vegetable oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, saline solutions and bases for operation at an average temperature
Water and steam up to +150°C
Atmospheric and ozone agents
Compatibility issue Chlorinated hydrocarbons
Polar solvents (ketones, esters and ethers)
Strong acids
Temperature range -30°C/+150°C

ACM

Polymers containing ethyl acrylate (or butyl acrylate) have a small amount of monomer, which is necessary for cross-linking; ACM is a material with better heat resistance than NBR. It is often used for automatic gearboxes.

Chemical resistance Mineral oils (motor oils, gear box oils, ATF oils)
Atmospheric and ozone agents
Compatibility issue Glycol-based brake fluids (Dot 3 & 4)
Aromatic and chlorinated hydrocarbons
Water and steam
Acids, alkalis and amines.
Temperature range - 25°C to + 150°C

VMQ

This VMQ-based rubber is very often used in fuel systems.

Chemical resistance Animal and vegetable oils and greases
Water for operation at an average temperature
Diluted saline solutions
Atmospheric and ozone agents
Compatibility issue Superheated steam up to +120°C
Chlorinated hydrocarbons with a low molecular weight (trichlorethylene)
Aromatic hydrocarbons (benzene, toluene)
Temperature range -60°C/+200°C

The table below gives an overview of the physical, chemical and mechanical characteristics for each of the materials.

Characteristics/Materials ACM EPDM FKM HNBR NBR VMQ
Abrasion resistant 2 2 2 2 2 4
Resistance to acids 4 2 1 1 3 3
Chemical resistance 4 1 1 2 2 2
Resistance to cold 4 2 4 2 2 2
Dynamic properties 3 2 2 1 2 4
Electrical properties 3 2 4 3 3 1
Flame resistant 4 4 1 4 4 3
Heat resistant 1 2 1 1 2 1
Sealing water 1 2 2 2 2 4
Oil resistant 1 4 1 1 1 2
Ozone resistant 1 1 1 2 4 1
Tearing resistant 2 1 3 2 2 4
Traction resistant 3 1 1 1 2 4
Water/vapour resistant 4 1 3 1 2 3
Resistance to atmospheric agents 1 1 1 2 3 1

1. Excellent properties 2. Good properties 3. Average properties 4. Poor properties

Technical data

Housing Groove Gland Rod Seal - BECA 230

Extrusion gaps

Pressure
MPa
Radial extrusion gap
F/2
2.5 MPa 0.45
5.0 MPa 0.35
7.5 MPa 0.30
10 MPa 0.25
15 MPa 0.20

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
3.50 0.20 0.40 2.00
5.00 0.40 0.60 2.50
7.50 0.80 1.00 4.00
10.00 0.80 1.00 5.00
103 dimensions found
230.1006014
Standard request
6,00 14,00 5,70 6,30
230.0651254
Standard request
6,50 12,50 3,90 4,00
230.0701304
Standard request
7,00 13,00 3,90 4,00
230.0081284
Standard request
8,00 12,80 4,00 5,00
230.1008014
Standard request
8,00 14,00 3,90 4,00
230.0008016
Standard request
8,00 16,00 5,70 6,30
230.1008016
Standard request
8,00 16,00 6,00 6,70
230.1013623
Standard request
10,00 13,60 2,30 2,70
230.1010018
Standard request
10,00 18,00 5,70 6,30
230.1010020
Standard request
10,00 20,00 7,30 8,00
230.1012020
Standard request
12,00 20,00 5,70 6,30
230.0012022
Standard request
12,00 22,00 7,30 8,00
230.1012022
Standard request
12,00 22,00 8,00 9,00
230.0132326
Standard request
13,00 23,20 5,20 5,80
230.1014022
Standard request
14,00 22,00 5,70 6,30
230.1014024
Standard request
14,00 24,00 7,30 8,00
230.1016024
Standard request
16,00 24,00 5,70 6,30
230.1016026
Standard request
16,00 26,00 7,30 8,00
230.1018025
Standard request
18,00 25,00 5,00 5,60
230.1018026
Standard request
18,00 26,00 5,70 6,30
230.1018028
Standard request
18,00 28,00 7,30 8,00
230.0190255
Standard request
19,00 25,00 4,70 5,30
230.0020654
Standard request
20,00 26,50 3,70 4,00
230.1020027
Standard request
20,00 27,00 6,00 6,50
230.1020028
Standard request
20,00 28,00 5,70 6,30
230.1020030
Standard request
20,00 30,00 7,30 8,00
230.2022030
Standard request
22,00 30,00 5,70 6,30
230.1022032
Standard request
22,00 32,00 7,30 8,00
230.1025032
Standard request
25,00 32,00 5,00 5,60
230.1025033
Standard request
25,00 33,00 5,70 6,30
230.5025035
Standard request
25,00 35,00 5,50 6,00
230.7025035
Standard request
25,00 35,00 7,30 8,00
230.1025035
Standard request
25,00 35,00 8,00 9,00
230.0289454
Standard request
28,00 34,50 3,70 4,00
230.1028038
Standard request
28,00 38,00 7,30 8,00
230.1028043
Standard request
28,00 43,00 11,50 12,50
230.1030040
Standard request
30,00 40,00 10,00 11,00
230.1031041
Standard request
31,00 41,00 10,00 11,00
230.1032040
Standard request
32,00 40,00 5,70 6,30
230.1032042
Standard request
32,00 42,00 7,30 8,00
230.1032047
Standard request
32,00 47,00 11,50 12,50
230.2035045
Standard request
35,00 45,00 9,00 10,00
230.1035045
Standard request
35,00 45,00 10,00 11,00
230.1035055
Standard request
35,00 55,00 11,00 12,00
230.1036046
Standard request
36,00 46,00 7,30 8,00
230.1036051
Standard request
36,00 51,00 11,50 12,50
230.2040050
Standard request
40,00 50,00 9,00 10,00
230.1040050
Standard request
40,00 50,00 10,00 11,00
230.1040055
Standard request
40,00 55,00 11,50 12,50
230.1042050
Standard request
42,00 50,00 5,70 6,30
230.7045055
Standard request
45,00 55,00 7,00 7,50
230.2045055
Standard request
45,00 55,00 7,30 8,00
230.1045055
Standard request
45,00 55,00 10,00 11,00
230.1045060
Standard request
45,00 60,00 11,50 12,50
230.7050060
Standard request
50,00 60,00 7,00 8,00
230.2050060
Standard request
50,00 60,00 7,30 8,00
230.1050060
Standard request
50,00 60,00 10,00 11,00
230.1050065
Standard request
50,00 65,00 11,50 12,50
230.1054064
Standard request
54,00 64,00 7,00 8,00
230.1055063
Standard request
55,00 63,00 5,70 6,30
230.1055065
Standard request
55,00 65,00 10,00 11,00
230.1056071
Standard request
56,00 71,00 11,50 12,50
230.1056076
Standard request
56,00 76,00 15,00 16,00
230.1060070
Standard request
60,00 70,00 10,00 11,00
230.2060070
Standard request
60,00 70,00 12,00 13,00
230.1063078
Standard request
63,00 78,00 11,50 12,50
230.1063083
Standard request
63,00 83,00 15,00 16,00
230.0065075
Standard request
65,00 75,00 12,00 13,00
230.1067077
Standard request
67,00 77,00 10,00 11,00
230.2070080
Standard request
70,00 80,00 6,50 7,50
230.1070080
Standard request
70,00 80,00 12,00 13,00
230.1070085
Standard request
70,00 85,00 11,50 12,50
230.1070090
Standard request
70,00 90,00 15,00 16,00
230.2080090
Standard request
80,00 90,00 10,00 11,00
230.1080090
Standard request
80,00 90,00 12,00 13,00
230.1080095
Standard request
80,00 95,00 11,50 12,50
230.1080100
Standard request
80,00 100,00 15,00 16,00
230.2090100
Standard request
90,00 100,00 6,50 7,50
230.1090100
Standard request
90,00 100,00 12,00 13,00
230.1090105
Standard request
90,00 105,00 11,50 12,50
230.1090110
Standard request
90,00 110,00 15,00 16,00
230.1100120
Standard request
100,00 120,00 15,00 16,00
230.1100125
Standard request
100,00 125,00 19,00 20,00
230.1110125
Standard request
110,00 125,00 9,60 10,60
230.1110130
Standard request
110,00 130,00 15,00 16,00
230.1110135
Standard request
110,00 135,00 19,00 20,00
230.1125145
Standard request
125,00 145,00 15,00 16,00
230.1125150
Standard request
125,00 150,00 19,00 20,00
230.1140160
Standard request
140,00 160,00 15,00 16,00
230.1140165
Standard request
140,00 165,00 19,00 20,00
230.1145160
Standard request
145,00 160,00 9,60 10,60
230.1160185
Standard request
160,00 185,00 19,00 20,00
230.1160190
Standard request
160,00 190,00 24,00 25,00
230.1180205
Standard request
180,00 205,00 19,00 20,00
230.1180210
Standard request
180,00 210,00 24,00 25,00
230.1185200
Standard request
185,00 200,00 9,60 10,60
230.1200225
Standard request
200,00 225,00 19,00 20,00
230.1200230
Standard request
200,00 230,00 24,00 25,00
230.1220250
Standard request
220,00 250,00 24,00 25,00
230.1250280
Standard request
250,00 280,00 24,00 25,00
