Piston seals

Joints hydrauliques de piston - Hydraulic piston seals - 420 x 185

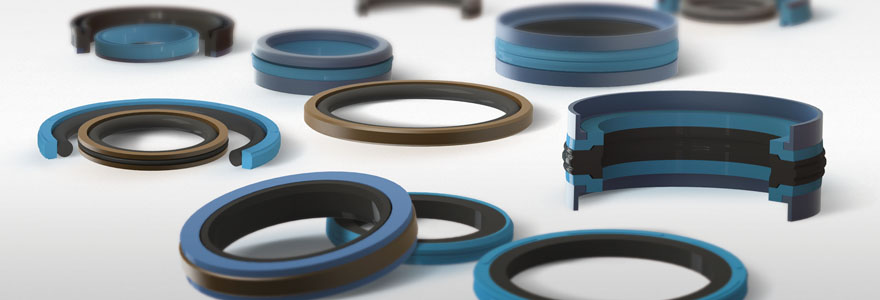

Piston hydraulic seals



The piston seals, mainly used in hydraulic cylinders, must ensure the sealing of pressurised fluids between the piston and the bore.

France Joint will assist you in selecting an appropriate profile, whatever the type of application, either through single-acting or double-acting piston seals.

BECA 003
View the family
BECA 003
BECA 003
Materials: POM + Fabric NBR + TPE
Temperature:

-30°C / +110°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 235P/AE
View the family
BECA 235P/AE
BECA 235P/AE
Materials: Elastomer + POM/PTFE
Temperature:

-30°C / +200°C

Pressure:

25 MPa

Speed:

0,5 m/s

BECA 335P/AE
View the family
BECA 335P/AE
BECA 335P/AE
Materials: PU + POM
Temperature:

-30°C / +110°C

Pressure:

45 MPa

Speed:

0,5 m/s

BECA 336
View the family
BECA 336
BECA 336
Materials: PU
Temperature:

-30°C / 110°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 336/AE
View the family
BECA 336/AE
BECA 336/AE
Materials: PU + POM
Temperature:

-30°C / +110°C

Pressure:

50 MPa

Speed:

0,5 m/s

BECA 500 - 502 - 504
View the family
BECA 500 - 502 - 504
BECA 500 - 502 - 504
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

50 MPa

Speed:

5 m/s

BECA 501 - 503 - 505
View the family
BECA 501 - 503 - 505
BECA 501 - 503 - 505
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

50 MPa

Speed:

5 m/s

BECA 507 - 508
View the family
BECA 507 - 508
BECA 507 - 508
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

50 MPa

Speed:

2 m/s

BECA 510
View the family
BECA 510
BECA 510
Materials: PU + NBR + POM
Temperature:

-30°C / +100°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 512
View the family
BECA 512
BECA 512
Materials: PTFE + NBR + POM
Temperature:

-30°C / +115°C

Pressure:

50 MPa

Speed:

1,5 m/s

BECA 513
View the family
BECA 513
BECA 513
Materials: PU + NBR + POM
Temperature:

-30°C / +100°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 519
View the family
BECA 519
BECA 519
Materials: PU + NBR
Temperature:

-30°C /+100°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 520 - 522 - 524
View the family
BECA 520
BECA 520 - 522 - 524
Materials: PU + NBR
Temperature:

-30°C / +100°C

Pressure:

25 MPa

Speed:

0,5 m/s

BECA 525
View the family
BECA 525
BECA 525
Materials: PU + NBR
Temperature:

-30°C / +100°C

Pressure:

25 MPa

Speed:

0,5 m/s

BECA 530
View the family
BECA 530
BECA 530
Materials: PU + NBR
Temperature:

-30°C / +100°C

Pressure:

25 MPa

Speed:

0,5 m/s

BECA 535
View the family
BECA 535
BECA 535
Materials: PU + NBR
Temperature:

-30°C / +100°C

Pressure:

25 MPa

Speed:

0,5 m/s

BECA 540 - 549
View the family
BECA 540
BECA 540 - 549
Materials: PTFE + Stainless steel
Temperature:

-200°C / +260°C

Pressure:

30 MPa

Speed:

15 m/s

BECA 550 - 559
View the family
BECA 550 - 559
BECA 550 - 559
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

35 MPa

Speed:

5 m/s

BECA 560
View the family
BECA 560
BECA 560
Materials: Elastomer + POM/PTFE
Temperature:

-30°C / +200°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 570
View the family
BECA 570
BECA 570
Materials: Fabric NBR + POM
Temperature:

-30°C / +110°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 571
View the family
BECA 571
BECA 571
Materials: Elastomer + POM/PTFE
Temperature:

-30°C / +200°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 572
View the family
BECA 572
BECA 572
Materials: PU + POM + POM
Temperature:

-30°C / +110°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 579
View the family
BECA 579
BECA 579
Materials: NBR + PU + POM
Temperature:

-30°C / +100°C

Pressure:

50 MPa

Speed:

0,5 m/s

BECA 579S
View the family
BECA 579S
BECA 579S
Materials: NBR + PU + POM
Temperature:

-30°C / +100°C

Pressure:

50 MPa

Speed:

0,5 m/s

BECA 580 - 581
View the family
BECA 580
BECA 580 - 581
Materials: Elastomer
Temperature:

-30°C / +200°C

Pressure:

8 MPa

Speed:

0,5 m/s

BECA 650
View the family
BECA 650
BECA 650
Materials: PA6 + NBR
Temperature:

-30°C / +100°C

Pressure:

40 MPa

Speed:

0,5 m/s

BECA 655
View the family
BECA 655
BECA 655
Materials: PA6/POM + NBR
Temperature:

-30°C / +100°C

Pressure:

50 MPa

Speed:

0,5 m/s
