Description

The BECA 579 profile is a high-performing, double acting compact piston seal composed of a profiled rubber ring, two polyurethane back-up rings and two POM back-up rings.

Advantages

Good sealing effect
Excellent extrusion resistance
Excellent wear resistance
Reliable sealing for significant and sudden pressure variations
Assembly in closed groove, reduced machined costs

Technical data

Temperature

-30°C/+100°C

Pressure

50 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils

Applications

Agriculture
Mobile machinery
Hydraulic cylinders

Materials

Profiled seal

NBR 80 Shore A

Back-up rings

Polyurethane 97 Shore A

Back-up rings

Polyoxymethylene (POM)

Dimensions
Materials
Technical data

Dimensions

579.0020AK8, 579.0022AK8, 579.0025AK8, 579.2025AK8, 579.1025AK8, 579.3025AK8, 579.0028AK8, 579.0030AK8, 579.1030AK8, 579.0032AK8, 579.1032AK8, 579.0035AK8, 579.1035AK8, 579.0040AK8, 579.4040AK8, 579.2040AK8, 579.3040AK8, 579.1040AK8, 579.0042AK8, 579.0045AK8, 579.1045AK8, 579.2045AK8, 579.0050AK8, 579.1050AK8, 579.0055AK8, 579.1055AK8, 579.0056AK8, 579.0060AK8, 579.1060AK8, 579.0063AK8, 579.1063AK8, 579.2063AK8, 579.0065AK8, 579.1065AK8, 579.0070AK8, 579.1070AK8, 579.0075AK8, 579.1075AK8, 579.0080AK8, 579.1080AK8, 579.0085AK8, 579.0090AK8, 579.1090AK8, 579.0095AK8, 579.0100AK8, 579.1100AK8, 579.0105AK8, 579.0110AK8, 579.1110AK8, 579.0115AK8, 579.1115AK8, 579.0120AK8, 579.0125AK8, 579.1125AK8, 579.0130AK8, 579.1130AK8, 579.0133AK8, 579.0135AK8, 579.1135AK8, 579.0140AK8, 579.1140AK8, 579.2140AK8, 579.0145AK8, 579.1145AK8, 579.0150AK8, 579.1150AK8, 579.0152AK8, 579.0155AK8, 579.1155AK8, 579.0160AK8, 579.1160AK8, 579.2160AK8, 579.3160AK8, 579.0165AK8, 579.0170AK8, 579.1170AK8, 579.0175AK8, 579.0180AK8, 579.1180AK8, 579.0185AK8, 579.0190AK8, 579.0195AK8, 579.0200AK8, 579.1200AK8, 579.0210AK8, 579.0220AK8, 579.1220AK8, 579.0230AK8, 579.0240AK8, 579.0250AK8, 579.1250AK8

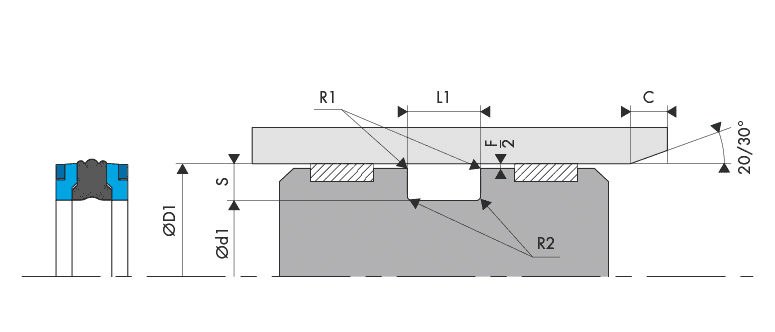

Installation drawingLogement Gorge Joint de piston - Housing Groove Gland Piston seal BECA 579

Materials

NBR 80 Shore A

Nitrile rubber (NBR) is the general term for acrylonitrile-butadiene copolymer. The ACN content can vary between 18% and 50%. While the acrylonitrile content is important, the resistance to oil and fuel is more so. Conversely, the elasticity and compression set are not as good. The NBR has good mechanical properties and good wear resistance. However, its resistance to atmospheric agents and the ozone is relatively low.

Chemical resistance Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Diluted acids, low-temperature alkaline and saline solutions
Water (up to +100°C max)
Compatibility issue Fuels with high aromatic content
Aromatic hydrocarbons (benzene)
Chlorinated hydrocarbons (trichlorethylene)
Polar solvents (ketone, acetone, acetic acid, ethylene-ester)
Strong acids
Glycol-based brake fluids
Atmospheric and ozone agents
Temperature range -30°C/+100°C

PU

Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.

Chemical resistance Pure aliphatic hydrocarbons (propane, butane)
Mineral oils and greases
Silicone oils and greases
Water up to +50°C
Compatibility issue Ketones, esters, ethers, alcohols and glycols
Hot water, steam, alkalis, amines and acids
Temperature range -30°C/+90°C
-30°C / +110°C with our PUHT (short term peak at 150°C)

Polyoxymethylene - POM

Polyoxymethylene (POM or polyacetal) belongs to the thermoplastics, which have a number of advantages - strong mechanical resistance, good creep strength, high resistance to shocks, particularly at low temperatures, good wear resistance, good sliding coefficient, excellent machinability and good dielectric properties. The low water absorption coefficient, unlike polyamide (PA), also gives this material an excellent dimensional stability.

Chemical resistance

Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Water

Compatibility issue Acids
Temperature range -50°C/+115°C

Technical data

Housing Groove Gland Piston Seal - BECA - 579

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
4.00 0.40 0.40 2.50
5.00 0.40 0.40 3.00
6.00 0.40 0.40 3.00
7.50 0.40 0.40 4.00
8.50 0.40 0.40 5.00
10.00 0.80 0.80 6.00
15.00 0.80 0.80 8.00
