BECA 810

BECA 810
beca_810_3d_image_v3
beca_810_3d_image_v4

Description

The BECA 810 profile is a standard stainless steel sleeve.

Advantages

Good corrosion resistance
Good chemical inertia
Extremely thin, no need to modify the dimensions of the shaft seal
Easy to fit

Technical data

Applications

Hubs
Pinions
Differentials
Gear boxes
Crankshafts

Materials

Material

Stainless steel - AISI 304

Hardness

More than 220 HV (95 HRB)

Thickness

0.28 mm (0/-0.05)

Surface roughness

Ra = 0.20 - 0.50 µm

Dimensions
Assembly recommendations

Dimensions

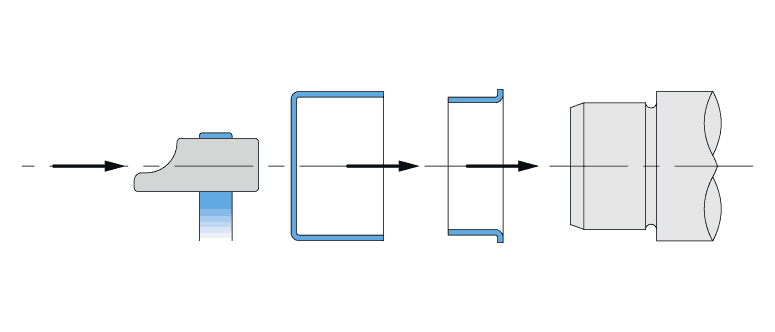

Installation drawingInstallation Manchon d'usure - Installation Sleeve - BECA 810

Assembly recommendations

Please refer to the instructions below to correctly fit the sleeves:

  • Clean the soiled areas of the shaft at the point of contact with the sealing lip of the ring. File down all burrs or rough areas to ensure that the sleeve does not prematurely deteriorate when fitted in a groove or any other part.
  • Using a calliper, measure the diameter of the shaft in 3 different positions and check that the average over these 3 measurements indicates a value that complies with the recommended dimensional range. If that is the case, the sleeve will have a sufficiently tight fit on the shaft to prevent any possible sliding.
  • Determine and mark where the sleeve must be positioned to cover the worn area, up to the end of the shaft.
  • The shallow wear grooves do not need to be filled. It is, however, possible to apply a sealing product to the inside diameter of the sleeve. Clean off any surplus product.
  • Deeper grooves can be filled with a metal-epoxy powder. Install the sleeve before the product hardens. Remove the surplus product.
  • When mounting the sleeve, the mechanical body must be shut down.
  • If the collar must be removed after installation, cut before installing part of the thinnest area using the outside diameter of the sleeve.
  • Position the sleeve in the mounting tool; it must be inserted into the shaft in its entirety. Use a mallet to tap on its centre, until the sleeve covers the worn shaft. Ensure that the mounting tool is dimensionally compatible, so as to insert the sleeve without distorting it.
  • Ensure that the outside of the sleeve has not been damaged during fitting. Its surface roughness and its cleanliness are two elements that determine the correct operation of the seal.
  • The length of the sleeve must not exceed the full length of the shaft, excluding the chamfer.

Mounting recommendations for the sleeves

266 dimensions found
810.0119905
Standard request
11,99 12,07 11,99 15,49 5,99 8,41 47,63
810.0127006
Standard request
12,65 12,75 12,70 15,49 6,35 8,74 50,80
810.0140006
Standard request
13,89 14,00 14,00 19,05 6,35 9,93 46,51
810.0143006
Standard request
14,22 14,38 14,30 19,05 6,35 9,93 46,51
810.0150105
Standard request
14,96 15,06 15,01 19,05 5,00 8,99 47,29
810.0158807
Standard request
15,82 15,93 15,88 19,05 7,95 10,31 50,80
810.0160007
Standard request
15,90 16,00 16,00 18,24 7,95 11,13 50,80
810.0169908
Standard request
16,94 17,04 16,99 22,23 8,00 11,00 50,80
810.0173707
Standard request
17,32 17,42 17,37 22,86 7,95 11,13 50,80
810.0180108
Standard request
17,88 18,01 18,01 24,43 8,00 11,00 46,00
810.0190507
Standard request
19,00 19,10 19,05 24,00 7,95 11,13 50,80
810.0193007
Standard request
19,28 19,33 19,30 23,83 7,95 11,13 50,80
810.0198407
Standard request
19,81 19,91 19,84 23,75 7,95 11,13 50,80
810.0199908
Standard request
19,94 20,04 19,99 23,62 8,00 11,00 50,80
810.0206509
Standard request
20,62 20,70 20,65 30,18 9,53 14,30 76,20
810.0218206
Standard request
21,77 21,87 21,82 29,34 6,35 9,53 50,80
810.0220006
Standard request
21,87 22,00 22,00 30,18 6,58 9,12 47,14
810.0220008
Standard request
21,87 22,00 22,00 30,18 8,00 11,99 46,02
810.0222307
Standard request
22,17 22,28 22,23 27,79 7,95 11,13 50,80
810.0231107
Standard request
23,06 23,16 23,11 30,94 7,95 11,13 46,91
810.0240007
Standard request
23,88 24,00 24,00 28,70 7,95 11,13 50,80
810.0246107
Standard request
24,54 24,64 24,61 28,70 7,95 11,13 50,80
810.0246115
Standard request
24,54 24,64 24,61 28,70 15,88 18,26 50,80
810.0249907
Standard request
24,94 25,04 24,99 33,02 7,95 11,00 50,80
810.0254007
Standard request
25,35 25,45 25,40 30,96 7,95 11,13 50,80
810.0260108
Standard request
25,88 26,01 26,01 33,35 8,00 11,99 46,05
810.0270007
Standard request
26,92 27,03 27,00 33,53 7,95 11,13 46,81
810.0276607
Standard request
27,61 27,71 27,66 35,71 7,95 11,13 15,88
810.0279909
Standard request
27,94 28,04 27,99 34,93 9,53 12,70 46,81
810.0285807
Standard request
28,52 28,63 28,58 38,10 7,95 11,13 17,48
810.0285809
Standard request
28,52 28,63 28,58 38,10 9,53 12,70 17,48
810.0293609
Standard request
29,31 29,41 29,36 34,29 9,53 12,70 17,48
810.0298507
Standard request
29,79 29,92 29,85 35,56 7,95 11,13 17,48
810.0300008
Standard request
29,95 30,07 30,00 35,56 8,00 11,00 17,48
810.0301807
Standard request
30,10 30,23 30,18 35,56 7,95 11,13 17,48
810.0309607
Standard request
30,89 31,04 30,96 39,70 7,95 11,00 15,88
810.0315008
Standard request
31,42 31,57 31,50 39,12 8,00 11,13 17,48
810.0317507
Standard request
31,67 31,83 31,75 38,10 7,95 11,13 17,48
810.0320008
Standard request
31,93 32,08 32,00 38,10 8,00 11,13 17,48
810.0329915
Standard request
32,94 33,05 32,99 40,49 15,01 18,01 25,40
810.0333512
Standard request
33,27 33,43 33,35 40,49 12,70 15,88 20,65
810.0333506
Standard request
33,22 33,38 33,35 40,64 6,35 9,53 20,65
810.0340112
Standard request
33,86 34,01 34,01 41,28 12,70 15,88 20,65
810.0349307
Standard request
34,82 34,98 34,93 41,61 7,95 11,13 20,65
810.0349312
Standard request
34,82 34,98 34,93 41,61 12,70 15,88 20,65
810.0349313
Standard request
34,93 35,08 34,93 41,61 13,00 16,00 20,65
810.0359913
Standard request
35,84 35,99 35,99 45,24 13,00 16,99 24,99
810.0365309
Standard request
36,45 36,60 36,53 45,24 9,53 12,70 25,81
810.0365314
Standard request
36,37 36,53 36,53 45,24 14,30 17,48 25,81
810.0380013
Standard request
37,85 38,00 38,00 45,24 13,00 16,99 24,99
810.0381009
Standard request
38,02 38,18 38,10 45,24 9,53 12,70 25,81
810.0381014
Standard request
38,02 38,18 38,10 45,24 14,30 17,48 25,81
810.0386811
Standard request
38,61 38,76 38,68 47,22 11,13 14,30 25,81
810.0394211
Standard request
39,34 39,50 39,42 47,22 11,13 14,30 25,81
810.0396714
Standard request
39,60 39,75 39,67 47,22 14,30 17,48 25,81
810.0398515
Standard request
39,78 39,93 39,85 47,22 15,88 19,05 25,81
810.0400109
Standard request
39,85 40,01 40,01 46,99 9,91 12,93 25,40
810.0400813
Standard request
39,93 40,08 40,08 46,99 13,00 16,00 25,98
810.0407712
Standard request
40,69 40,84 40,77 49,23 12,70 16,28 25,40
810.0410012
Standard request
40,84 41,00 41,00 49,23 12,70 15,88 25,81
810.0412807
Standard request
41,20 41,35 41,28 47,63 7,95 11,13 25,81
810.0412814
Standard request
41,20 41,35 41,28 47,63 14,30 17,48 20,65
810.0419111
Standard request
41,83 42,01 41,91 53,01 11,30 14,50 21,49
810.0419114
Standard request
41,83 42,01 41,91 53,01 14,30 17,50 21,01
810.0420114
Standard request
41,83 42,01 42,01 53,01 14,30 17,50 21,01
810.0420613
Standard request
41,99 42,14 42,06 53,01 13,97 17,50 21,01
810.0428807
Standard request
42,80 42,95 42,88 48,41 7,95 11,13 22,23
810.0428814
Standard request
42,77 42,93 42,88 48,41 14,30 17,48 22,23
810.0430012
Standard request
42,85 43,00 43,00 48,41 12,70 15,88 21,44
810.0436614
Standard request
43,56 43,71 43,66 51,59 14,30 17,48 20,65
810.0441709
Standard request
44,09 44,25 44,17 52,40 9,53 12,70 20,65
810.0444509
Standard request
44,37 44,53 44,45 52,20 9,53 12,70 20,65
810.0444513
Standard request
44,37 44,53 44,45 52,40 13,49 15,88 22,30
810.0444514
Standard request
44,37 44,53 44,45 52,40 14,30 17,48 20,65
810.0444519
Standard request
44,37 44,53 44,45 52,40 19,05 22,23 20,65
810.0448614
Standard request
44,73 44,88 44,86 52,40 14,30 17,48 20,65
810.0450114
Standard request
44,93 45,09 45,01 53,01 14,00 16,99 20,62
810.0452416
Standard request
45,16 45,31 45,24 53,98 16,94 20,32 26,97
810.0460514
Standard request
45,95 46,10 46,05 53,09 14,30 17,48 25,40
810.0472214
Standard request
47,17 47,32 47,22 54,76 14,30 17,48 25,40
810.0474522
Standard request
47,40 47,55 47,45 55,58 22,58 26,04 25,40
810.0476304
Standard request
47,55 47,70 47,63 55,96 4,45 7,49 18,90
810.0476307
Standard request
47,55 47,70 47,63 55,96 7,49 10,54 18,90
810.0476309
Standard request
47,55 47,70 47,63 55,96 9,53 13,11 26,67
810.0476314
Standard request
47,55 47,70 47,63 55,96 14,30 17,48 25,40
810.0480314
Standard request
47,93 48,08 48,03 56,01 14,00 16,97 24,99
810.0485609
Standard request
48,49 48,64 48,56 56,36 9,53 12,70 25,40
810.0492314
Standard request
49,12 49,28 49,23 56,36 14,30 17,48 25,40
810.0500114
Standard request
49,91 50,06 50,01 57,00 14,00 16,97 24,99
810.0502914
Standard request
50,22 50,37 50,29 58,75 14,30 17,88 26,67
810.0508014
Standard request
50,72 50,88 50,80 61,11 14,30 17,48 25,55
810.0508022
Standard request
50,72 50,88 50,80 61,11 22,23 25,40 25,40
810.0519912
Standard request
51,82 51,99 51,99 62,71 12,70 15,88 34,52
810.0524019
Standard request
52,25 52,40 52,40 62,71 19,84 23,83 34,93
810.0539812
Standard request
53,92 54,05 53,98 61,52 12,70 19,05 32,54
810.0539819
Standard request
53,95 54,10 53,98 61,52 19,84 23,83 34,93
810.0549919
Standard request
54,91 55,07 54,99 62,00 19,99 22,99 31,75
810.0555819
Standard request
55,52 55,68 55,58 63,50 19,84 23,83 33,35
810.0560112
Standard request
55,83 56,01 56,01 64,29 12,70 15,88 33,35
810.0560119
Standard request
55,83 56,01 56,01 64,29 19,79 23,77 80,01
