Rod seals

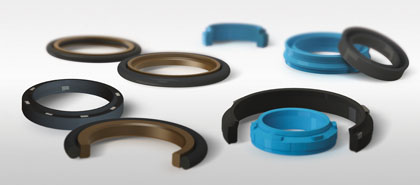

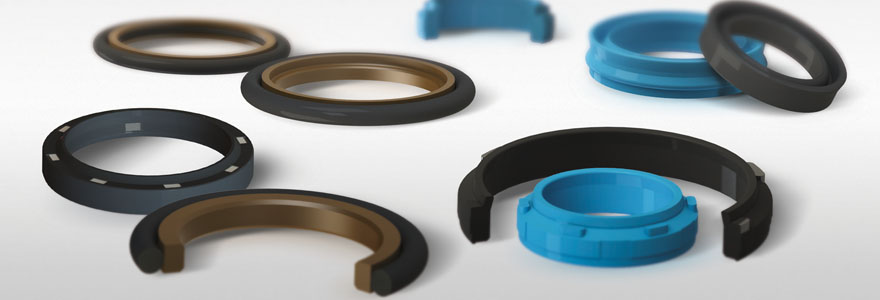

Joints pneumatiques de tige - Pneumatic rod seals - 420 x 185

Rod pneumatic seals



France Joint has a complete range of rod seals - U-seal, composite seal, low-friction PTFE seal - ensuring the sealing of compressed air or pressurised gas between the rod and the rod end port.

BECA 150 - 152 - 154
View the family
BECA 150 - 152 - 154
BECA 150 - 152 - 154
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

1,6 MPa (5,0 MPa max)

Speed:

5 m/s

BECA 151 - 153 - 155
View the family
BECA 151 - 153 - 155
BECA 151 - 153 - 155
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

1,6 MPa (5,0 MPa max)

Speed:

5 m/s

BECA 170 - 179
View the family
BECA 170 - 179
BECA 170 - 179
Materials: PTFE + Elastomer
Temperature:

-30°C / +200°C

Pressure:

1,6 MPa

Speed:

5 m/s

BECA 380 - 383
View the family
BECA 380 - 383
BECA 380 - 383
Materials: Elastomer + Steel
Temperature:

-30°C / +150°C

Pressure:

1,6 MPa

Speed:

1 m/s

BECA 384
View the family
BECA 384
BECA 384
Materials: PU
Temperature:

-30°C / +110°C

Pressure:

1,6 MPa

Speed:

1 m/s

BECA 385
View the family
BECA 385
BECA 385
Materials: Elastomer
Temperature:

-30°C / +150°C

Pressure:

1,6 MPa

Speed:

1 m/s

BECA 390
View the family
BECA 390
BECA 390
Materials: PU
Temperature:

-30°C / +110°C

Pressure:

1,6 MPa

Speed:

1 m/s

BECA 391
View the family
BECA 391
BECA 391
Materials: Elastomer
Temperature:

-30°C / +150°C

Pressure:

1,6 MPa

Speed:

1 m/s
