The BECA 231 profile is a U-ring type single acting rod seal with asymmetrical polyurethane lips. It can be assembled in a groove according to standard ISO 5597.

Advantages

Optimised sealing effect at both high and low pressures
Excellent abrasion and extrusion resistance
Assembly by deformation in closed groove

Technical data

Temperature

-30°C/+110°C

Pressure

40 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils

Applications

Mobile machinery
Injection presses
Machine tools
Presses
Hydraulic cylinders

Materials

PU 93 Shore A - Blue
PU 96 Shore A - Blue
High temp. PU 96 Shore A - Beige

Dimensions
Materials
Technical data

Dimensions

231.0060146, 231.0080166, 231.0100186, 231.0100208, 231.0120206, 231.0120228, 231.0140226, 231.0140248, 231.0160268, 231.0200307, 231.0200308, 231.0220285, 231.0220307, 231.0220326, 231.0220328, 231.0250338, 231.0250358, 231.0280431, 231.0300451, 231.0350437, 231.0350457, 231.0360512, 231.0400551, 231.0420506, 231.0450556, 231.0450601, 231.0500606, 231.0500631, 231.0500650, 231.0500651, 231.0550636, 231.0560711, 231.0560761, 231.0630781, 231.0630831, 231.0650781, 231.0650801, 231.0700831, 231.0700851, 231.0700901, 231.0750881, 231.0750900, 231.0750901, 231.0800951, 231.0801005, 231.0851009, 231.0901007, 231.0901051, 231.0901101, 231.0951109, 231.0961061, 231.1001081, 231.1001151, 231.1001201, 231.1001251, 231.1101251, 231.1101301, 231.1101351, 231.1251451, 231.1251501, 231.1301501, 231.1401601, 231.1401651, 231.1451601, 231.1601851, 231.1601902, 231.1701901, 231.1802051, 231.1802102, 231.1852001, 231.2002256, 231.2002259, 231.2002302, 231.2202502, 231.2502802, 231.2803102, 231.3203603, 231.3604003

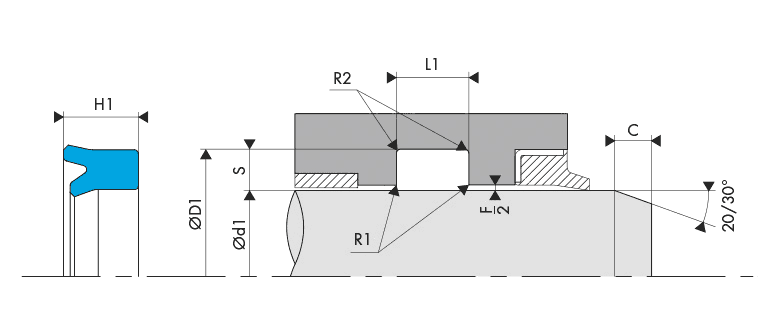

Installation drawingLogement Gorge Joint de tige - Housing Groove Gland Rod seal BECA 231

Materials

PU

Polyurethane is a material that has the elastic properties of rubber. The proportion in its composition (diisocyanate, polyol, chain extender) is determined by its properties. This material is characterised by a strong mechanical resistance, good wear resistance, high elastic modulus, good flexibility and a very good ozone and oxidation resistance.

Chemical resistance Pure aliphatic hydrocarbons (propane, butane)
Mineral oils and greases
Silicone oils and greases
Water up to +50°C
Compatibility issue Ketones, esters, ethers, alcohols and glycols
Hot water, steam, alkalis, amines and acids
Temperature range -30°C/+90°C
-30°C / +110°C with our PUHT (short term peak at 150°C)

Technical data

Housing Groove Gland Rod Seal - BECA 231

Extrusion gaps

Rod diameter
Ød1
Radial extrusion gap
F/2
≤ 5 MPa ≤ 10 MPa ≤ 20 MPa ≤ 30 MPa ≤ 40 MPa
≤ 60 mm 0.40 0.30 0.20 0.15 0.10
> 60 mm 0.50 0.40 0.30 0.20 0.15

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Chamfer
C
3.50 0.20 0.40 2.00
4.00 0.20 0.60 2.50
5.00 0.20 1.00 2.50
7.50 0.20 1.00 4.00
12.50 0.20 1.30 6.00
20.00 0.20 1.80 8.00
78 dimensions found
