BECA 570

BECA 570
beca_570_3d_v1
beca_570_3d_v2

Description

The BECA 570 profile is a high-performing, double acting compact piston seal composed of a profiled rubber ring with special fibre reinforcements and a POM wear/back-up ring. It can be assembled in a groove according to standard ISO 6547.

Advantages

Good sealing effect
Excellent extrusion resistance
Excellent wear resistance
Reliable sealing for significant and sudden pressure variations

Technical data

Temperature

-30°C/+110°C

Pressure

40 MPa

Speed

0.5 m/s

Medias

Mineral hydraulic oils
Fire-resistant liquids
Biocompatible fluids
Water
Others (contact our experts)

Applications

Agriculture
Mobile machinery
Hydraulic cylinders

Materials

Profiled seal

Fabric NBR

Wear/back-up rings

Polyoxymethylene (POM)

Dimensions
Materials
Technical data

Dimensions

570.R025AF8, 570.3025AF8, 570.S030AF8, 570.R030AF8, 570.0030AF8, 570.R032AF8, 570.3032AF8, 570.0035AF8, 570.R035AF8, 570.2040AF8, 570.0040AF8, 570.R040AF8, 570.3040AF8, 570.0045AF8, 570.R045AF8, 570.0050AF8, 570.3050AF8, 570.0055AF8, 570.0060AF8, 570.0063AF8, 570.3063AF8, 570.0065AF8, 570.0070AF8, 570.0075AF8, 570.3080AF8, 570.0080AF8, 570.0085AF8, 570.0090AF8, 570.3100AF8, 570.0100AF8, 570.0110AF8, 570.0120AF8, 570.3125AF8, 570.0125AF8, 570.5130AF8, 570.3140AF8, 570.0140AF8, 570.0150AF8, 570.5160AF8, 570.0160AF8, 570.0170AF8, 570.3180AF8, 570.0180AF8, 570.3200AF8, 570.0200AF8, 570.0220AF8, 570.0250AF8, 570.0320AF8, 570.0400AF8, 570.0500AF8

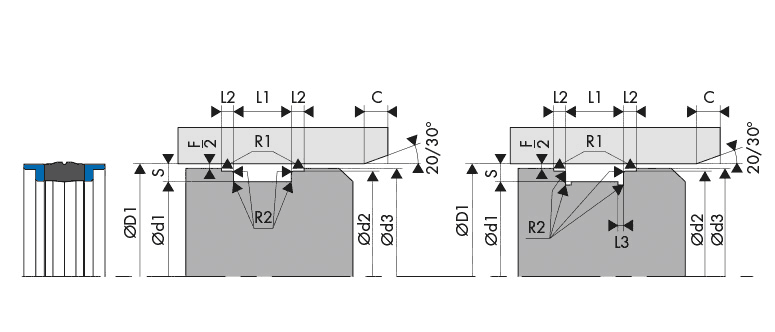

Installation drawingLogement Gorge Joint de piston - Housing Groove Gland Piston seal BECA 570

Materials

Fabric NBR 80 Shore A

The cotton fabric is impregnated with a nitrile (NBR) solution to make the hydraulic seals. This material creates a strong wear and degradation resistance. It has a good friction coefficient and is not likely to swell.

Polyoxymethylene - POM

Polyoxymethylene (POM or polyacetal) belongs to the thermoplastics, which have a number of advantages - strong mechanical resistance, good creep strength, high resistance to shocks, particularly at low temperatures, good wear resistance, good sliding coefficient, excellent machinability and good dielectric properties. The low water absorption coefficient, unlike polyamide (PA), also gives this material an excellent dimensional stability.

Chemical resistance

Aliphatic hydrocarbons (propane, butane, petroleum, diesel fuel)
Mineral oils and greases
Fire-resistant fluids (HFA, HFB and HFC)
Water

Compatibility issue Acids
Temperature range -50°C/+115°C

Technical data

Housing Groove Gland Piston Seal - BECA - 570

Surface roughness

Roughness Dynamic surface area Static surface area Groove flanks
Ra 0.1 - 0.4 µm ≤ 1.6 µm ≤ 3.2 µm
Rz 0.63 - 2.5 µm ≤ 6.3 µm ≤ 10.0 µm
Rmax 1.0 - 4.0 µm ≤ 10.0 µm ≤ 16.0 µm

Chamfers and radius

Radial section
S
Radius
R1
Radius
R2
Min. chamfer
C
4.00 0.40 0.40 2.50
5.00 0.40 0.40 3.00
6.00 0.40 0.40 3.00
7.50 0.40 0.40 4.00
8.50 0.40 0.40 5.00
10.00 0.80 0.80 6.00
15.00 0.80 0.80 8.00
50 dimensions found
570.R025AF8
Standard request
25,00 17,00 21,00 24,40 13,50 3,20 2,10
570.3025AF8
Standard request
25,00 17,00 22,00 24,00 10,00 4,00 -
570.S030AF8
Standard request
30,00 21,00 27,00 29,00 13,50 2,10 -
570.R030AF8
Standard request
30,00 22,00 26,00 29,40 13,50 3,20 2,10
570.0030AF8
Standard request
30,00 22,00 26,00 29,40 13,50 3,20 -
570.R032AF8
Standard request
32,00 24,00 28,00 31,40 15,50 3,20 3,10
570.3032AF8
Standard request
32,00 24,00 29,00 31,00 10,00 4,00 -
570.0035AF8
Standard request
35,00 27,00 31,00 34,40 15,50 3,20 -
570.R035AF8
Standard request
35,00 27,00 31,00 34,40 15,50 3,20 3,10
570.2040AF8
Standard request
40,00 30,00 35,40 38,40 16,30 6,35 -
570.0040AF8
Standard request
40,00 32,00 36,00 39,40 15,50 3,20 -
570.R040AF8
Standard request
40,00 32,00 36,00 39,40 15,50 3,20 3,10
570.3040AF8
Standard request
40,00 32,00 37,00 39,00 10,00 4,00 -
570.0045AF8
Standard request
45,00 37,00 41,00 44,40 15,50 3,20 -
570.R045AF8
Standard request
45,00 37,00 41,00 44,40 15,50 3,20 3,10
570.0050AF8
Standard request
50,00 38,00 46,00 49,40 20,50 4,20 -
570.3050AF8
Standard request
50,00 40,00 47,00 49,00 12,50 4,00 -
570.0055AF8
Standard request
55,00 43,00 51,00 54,40 20,50 4,20 -
570.0060AF8
Standard request
60,00 48,00 56,00 59,40 20,50 4,20 -
570.0063AF8
Standard request
63,00 51,00 59,00 62,40 20,50 4,20 -
570.3063AF8
Standard request
63,00 53,00 60,00 62,00 12,50 4,00 -
570.0065AF8
Standard request
65,00 53,00 61,00 64,40 20,50 4,20 -
570.0070AF8
Standard request
70,00 58,00 66,00 69,40 20,50 4,20 -
570.0075AF8
Standard request
75,00 63,00 71,00 74,40 20,50 4,20 -
570.3080AF8
Standard request
80,00 65,00 76,00 78,50 20,00 5,00 -
570.0080AF8
Standard request
80,00 66,00 76,00 79,40 22,50 5,20 -
570.0085AF8
Standard request
85,00 71,00 81,00 84,40 22,50 5,20 -
570.0090AF8
Standard request
90,00 76,00 86,00 89,40 22,50 5,20 -
570.3100AF8
Standard request
100,00 85,00 96,00 98,50 20,00 5,00 -
570.0100AF8
Standard request
100,00 86,00 96,00 99,40 22,50 5,20 -
570.0110AF8
Standard request
110,00 96,00 106,00 109,40 22,50 5,20 -
570.0120AF8
Standard request
120,00 106,00 116,00 119,40 22,50 5,20 -
570.3125AF8
Standard request
125,00 105,00 120,00 123,00 25,00 6,30 -
570.0125AF8
Standard request
125,00 108,00 121,00 124,40 26,50 7,20 -
570.5130AF8
Standard request
130,00 105,00 122,60 127,50 25,30 3,50 -
570.3140AF8
Standard request
140,00 120,00 135,00 138,00 25,00 6,30 -
570.0140AF8
Standard request
140,00 123,00 136,00 139,40 26,50 7,20 -
570.0150AF8
Standard request
150,00 133,00 146,00 149,40 26,50 7,20 -
570.5160AF8
Standard request
160,00 140,00 155,00 158,00 25,00 6,30 -
570.0160AF8
Standard request
160,00 143,00 156,00 159,40 26,50 7,20 -
570.0170AF8
Standard request
170,00 153,00 166,00 169,40 26,50 7,20 -
570.3180AF8
Standard request
180,00 150,00 172,00 178,00 36,00 7,20 -
570.0180AF8
Standard request
180,00 163,00 176,00 179,40 26,50 7,20 -
570.3200AF8
Standard request
200,00 170,00 192,00 197,00 36,00 12,50 -
570.0200AF8
Standard request
200,00 180,00 196,00 199,40 31,50 9,20 -
570.0220AF8
Standard request
220,00 200,00 216,00 219,40 31,50 9,20 -
570.0250AF8
Standard request
250,00 230,00 246,00 249,40 31,50 9,20 -
570.0320AF8
Standard request
320,00 290,00 312,00 317,00 36,00 12,50 -
570.0400AF8
Standard request
400,00 360,00 392,00 397,00 50,00 16,00 -
570.0500AF8
Standard request
500,00 460,00 492,00 497,00 50,00 16,00 -
