Graphite fiber
The graphite-fiber composite flat gasket is a cutting-edge sealing solution for heavy-duty applications. Combining the flexibility of graphite with the mechanical strength of aramid fibers, it is designed to withstand extreme thermal and chemical stresses without compromising safety.

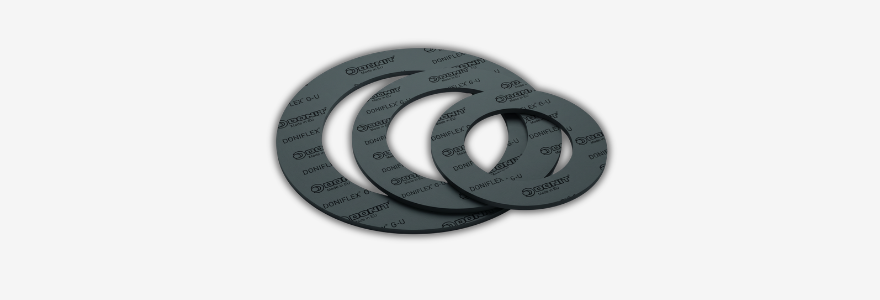

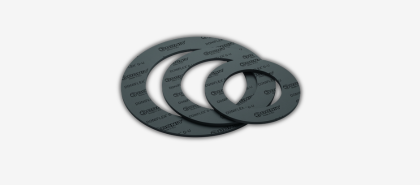

Custom-cut graphite-fiber flat gasket
We work with materials such as Doniflex® G-U, an advanced composite combining graphite, aramid fibers, and mineral fillers. It is engineered to meet the most demanding industrial requirements.
This material stands out for its excellent physicochemical properties. It offers high compressibility and flexibility, allowing it to conform perfectly to irregular surfaces.
Graphite-fiber flat gaskets are ideally suited for steam circuits, heating systems, and chemical industry installations. They feature a high-performance anti-stick coating for effortless replacement, even after prolonged high-temperature service. Available as custom-cut gaskets.
Graphite-fiber material comparison chart for flat gaskets
Consult our graphite-fiber comparison chart to determine if our material is suitable for your application. Further details are available in the downloadable material data sheet.
| Material code | Fiber | Compressibility (%) | Recovery (%) | Traction | Hot relaxation (MPa) | Specific leak rate (mg/(s.m)) |
Thickness variation after immersion (%) | Compression module (%) |
Relaxation by creep (%) |
Creep deformation (%) |
Technical data sheet |
| DONFILEX G-U | Aramid + Graphite + Inorganic fillers + NBR | 35 | 25 |
5 |
* 42, 37 |
0,05 | * 3, 3 |
* 30, 6 |
* 3,5, 0,3 |
* 30, 12, 15 |
 |
* See test details in the downloadable material data sheet
Do you need to cut flat graphite-fiber gaskets?
From single units to large-scale production runs, we process graphite fiber according to your specifications. Our experts help you in selecting the right material for your industrial applications. Request a quote.
Only on request
