Cellular rubber
Cellular rubber for flat gaskets provides an optimal seal with minimal clamping force, thanks to its flexible cellular structure. It is the ideal solution for irregular or fragile surfaces.

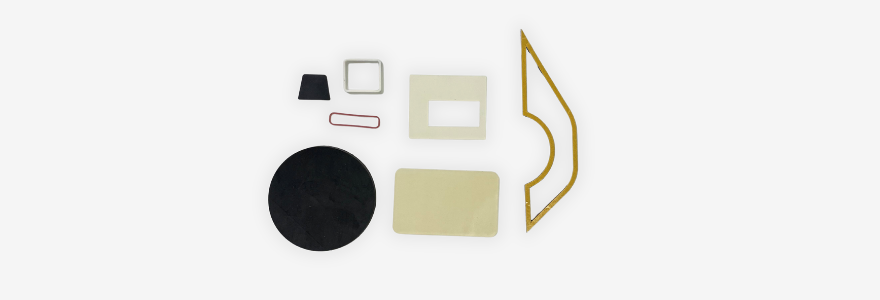

Custom-cut cellular rubber flat gaskets
Our range of specialized materials meets all your requirements:
- EPDM & silicone: excellent thermal properties and UV resistance
- Neoprene & NBR: resistance to oils, hydrocarbons, and mechanical stress
- PE & EVA foams: lightweight solutions for cushioning and insulation
Suitable for gasket cutting, our products are manufactured according to your specifications, from prototypes to large-scale production runs.
Cellular rubber comparison chart for flat gasket cutting
Check out our cellular foam comparison chart:
| Material code |
Material type |
Hardness (Shore 00) |
Density |
Deformation |
Compr. (%) |
Water absorption |
Constante T° (°C) |
Peak T° (°C) |
Resistance | Technical data sheet |
| EC001 | CR | 55 | 140 ± 30 | 25% (35-65 kPa) 50% (80-160 kPa) |
* < 25 |
< 5 | -50 / +100 | +110 | Ozone Abrasion Atmospheric agent |
 |
| CC001 | EPDM | 22 | 80 ± 20 | 25 (10-30 kPa) 50 (55-100 kPa) |
* < 30 |
< 5 | - 50 / + 100 | + 120 | |
|
| CC002 | EPDM | 35 | 120 ± 20 | 25 (13,8-62,1 kPa) 50 (80-160 kPa) |
** |
< 5 | -40 / +100 | +115 | Ozone Air UV |
|
| CC003 | EPDM | 35 | 130 ± 20 | 25 (35-15 kPa) 50 (120-40 kPa) |
** |
< 5 | -40 / +100 | +120 | Ozone Corrosion Tearing Abrasion |
|
| CC004 | EPDM | 40 | 175 ± 25 | 25 (50-15 kPa) 50 (120-40 kPa) |
** |
< 5 | -50 / +110 | +120 | Ozone Abrasion Bad weather |
|
| CC005 | EPDM | / | 100 ± 20 | 25 (< 3 kPa) 50 (< 6 kPa) |
** |
/ | -50 / +100 | + 120 | Ozone Air UV |
|
| CC007 | EPDM/CR | 35 | 130 ± 25 | 25 (40 ± 15 kPa) 50 (120 ± 40 kPa) |
** |
< 5 | -40 / +100 | +120 | |
|
| SPEC1 | EVA/PE | 90 | 100 ± 25 | / |
** |
< 5 | -40 / +70 | +80 | Ozone Abrasion Bad weather |
|
| CC008 | EPDM | 45 | 100 ± 20 | 25 (30-60 kPa) 50 (80-120 kPa) |
* < 25 |
< 3 | -30 / +85 | -30 / +85 | Ozone | |
| CC010 | EPDM Peroxyde | 35 | 100 ± 20 | 25 (30-60 kPa) 50 (80-160 kPa) |
* < 25 |
< 5 | -30 / +60 | +85 | Ozone | |
| OVC01 | NBR/PVC | 50 | 180 ± 30 | 25 (30-50 kPa) 50 (80-160 kPa) |
* |
< 5 | -40 / +90 | +110 | Ozone Abrasion Bad weather |
|
| PEC01 | PE | 50 | 30 ± 4 | 25 (45-55 kPa) 50 (65-120 kPa) |
* |
< 3 | -40 / +80 | / | Ozone Abrasion Bad weather |
|
| FC001 | Silicone | 42 | 250 ± 20 | 40 (90 kPa) |
**** |
< 5 | -60 / +230 | +250 | Ozone Oxidation UV Bad weather |
|
* ISO 815-1, 23°C, 50%, 24h
** ASTM D1056, 23°C, 50%, after 24h
*** NFR 99-211, 40°C, 50%, after 22h
**** ISO 1856, 70°C, 50%, 22h
Do you need to cut flat cellular rubber gaskets?
From single units to large-scale production runs, we process cellular rubber according to your specifications. Our experts will help you select the right material for your industrial applications. Request a quote.
Only on request
