Solid rubber
Solid rubber is the go-to solution for flat gaskets subjected to high pressure or significant mechanical stress. Its density ensures a robust seal and maximum durability, with a temperature resistance range of -90°C to +275°C.

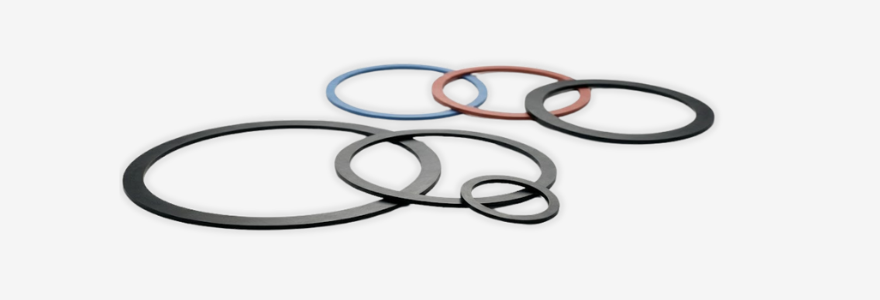

Custom-cut solid rubber flat gaskets
Our range of specialized solid rubber materials is designed for the most demanding environments:
- Standard use: NR/SBR and IR, ideal for their excellent mechanical properties.
- Weather & fluids: EPDM (standard or peroxide-cured for enhanced thermal stability), CSM, and CR (Neoprene) for optimal resistance to ozone and aging.
- Oils & hydrocarbons: NBR, NBR/SBR, and NBR/PVC, formulated to maintain integrity upon contact with mineral oils and greases.
- Extreme conditions: FKM (Viton®) for acids and very high temperatures, and VMQ for flexibility across a wide temperature range.
We process materials that meet the strictest standards and certifications for demanding industrial sectors, such as:
Food processing: odorless and tasteless grades, compliant with FDA and EC Regulation No. 1935/2004.
Health & safety: metal-detectable rubbers to prevent physical contamination.
Railways: EN 45545-2 (R10 HL3) approvals for maximum fire safety.
Available as custom-cut gaskets, our products guarantee total precision based on your technical drawings.
Solid rubber comparison chart for flat gasket cutting
Consult our solid rubber comparison chart to verify the suitability of this material for your project. Download our material data sheets for further details.
| Material code | Material type | Hardness (Shore A) |
Color | min. T° (°C) |
max. T° (°C) |
Density (g/cm³) |
Traction (Mpa) |
Elongation (%) |
Specificity | Thickness (mm)* |
Technical data sheet |
| CR5002 | CR | 65 | Black | -30 | 120 | 1,4 | 10 | 400 | 1-10 | on request | |
| CR5003 | CR | 65 | Off-white | -30 | 120 | 1,45 | 5 | 250 | Odorless, Savorless FDA, CE N°1935/2004 |
2-5 | on request |
| CR5004 | CR | 65 | Black | -20 | +110 | 1,40 | 10,7 | 450 | Premium blend | 1-50 | on request |
| CR5005 | CR | 65 | Black | -20 | +110 | 1,45 | 5,85 | 300 | Standard blend | 1-50 |  |
| CR6014 | CR | 70 | Black | -30 | +120 | 1,40 | 6,85 | 200 | UL 94 V2 | 1-50 | |
| CR6015 | CR | 70 | Black | -20 | +100 | 1,45 | 4,9 | 250 | Economical blend | 1-50 | |
| CRS401 | CR / SBR | 50 | Black | -30 | 70 | 1,45 | 4 | 200 | 1-20 | on request | |
| CRS601 | CR / SBR | 70 | Black | -30 | 70 | 1,45 | 4 | 200 | 1-25 | on request | |
| CRS602 | CR / SBR | 70 | Black | -30 | 80 | 1,45 | 5 | 225 | 1-10 | on request | |
| CM5001 | CSM | 65 | Black | -30 | 130 | 1,4 | 10 | 350 | 2-6 | on request | |
| CM7001 | CSM | 70 | Black | -35 | +130 | 1,4 | 6,8 | 400 | Excellent resistance to aging | 1-50 | |
| C1000 | EPDM | 30 | Black | -30 | 125 | 1,05 | 9 | 450 | 2-5 | on request | |
| C4112 | EPDM | 60 | Off-white | -25 | 140 | 1,3 | 5 | 300 | Odorless, Savorless FDA, CE N°1935/2004 |
1-10 | on request |
| C4113 | EPDM | 60 | White | -30 | +120 | 1,25 | 9,8 | 300 | FDA list 177.2600 CE N°1935/2004 |
1-50 | |
| C4114 | EPDM | 60 | Black | -20 | +100 | 1,35 | 4,9 | 300 | 1-50 | |
|
| C4115 | EPDM | 60 | Black | -30 | +120 | 1,35 | 11,7 | 350 | Special blend | 0,5-50 | |
| C5032 | EPDM | 65 | Black | -30 | 130 | 1,25 | 8 | 350 | 0,5-10 | on request | |
| C5033 | EPDM | 65 | Black | -30 | +120 | 1,35 | 5,85 | 250 | Premium blend | 1-50 | |
| C6118 | EPDM | 70 | Black | -30 | 120 | 1,15 | 11,5 | 370 | 2-10 | on request | |
| C6119 | EPDM | 70 | Black | -30 | 100 | 1,45 | 7 | 400 | EN 45545 R10 HL3 | 2-5 | on request |
| CS301 | EPDM / SBR | 50 | Black | -30 | 70 | 1,45 | 4 | 200 | 1-20 | on request | |
| C6120 | EPDM peroxydé | 70 | Black | -40 | 140 | 1,25 | 9 | 200 | Peroxyde | 1-5 | on request |
| CS501 | EPDM/SBR | 65 | Black | -30 | 90 | 1,35 | 6 | 250 | 1-10 | on request | |
| CS601 | EPDM/SBR | 70 | Black | -30 | 70 | 1,45 | 4 | 200 | 1-25 | on request | |
| G5000 | FKM | 65 | Off-white | -30 | 275 | 1,95 | 5 | 250 | Odorless, savorless, FDA | 1-5 | on request |
| G6134 | FKM | 70 | Black | -30 | 275 | 1,9 | 5 | 200 | 0,5-12 | on request | |
| G6135 | FKM | 70 | Black | -30 | 275 | 1,95 | 6 | 250 | Viton | 1-5 | on request |
| G6136 | FKM | 70 | Black | -10 | +250 | 1,85 | 4,85 | 200 | 1-10 | |
|
| G6137 | FKM | 70 | Black | -20 | +250 | 2,00 | 5,85 | 200 | 1-20 | |
|
| U5001 | IIR | 65 | Black | -45 | +130 | 1,35 | 6,8 | 300 | Completely impervious to osmosis | 1-50 | |
| IR401 | IR | 60 | Black | -45 | 120 | 1,2 | 9 | 350 | 2-6 | on request | |
| K4028 | NBR | 60 | Off-white | -25 | 110 | 1,4 | 6 | 350 | Odorless, savorless, FDA CE N°1935/2004 |
1-10 | on request |
| K4029 | NBR | 60 | Blue | -25 | 110 | 1,4 | 6 | 350 | Odorless, savorless, FDA CE N°1935/2004 |
2-5 | on request |
| K4030 | NBR | 60 | Black | -30 | +120 | 1,20 | 9,8 | 250 | Exceptional resistance to oils (high %ACN) | 1-50 | |
| K5024 | NBR | 65 | Black | -30 | 110 | 1,35 | 10 | 350 | 0,5-10 | on request | |
| F5026 | NBR | 65 | Black | -30 | 100 | 1,35 | 9,8 | 350 | Premium blend | 1-50 | on request |
| K5027 | NBR | 65 | Black | -30 | 110 | 1,25 | 9,8 | 350 | Suitable for unleaded and premium unleaded petrol | 1-50 | |
| K6176 | NBR | 70 | Black | -30 | 90 | 1,4 | 5,8 | 300 | Standard blend | 1-50 | |
| K8163 | NBR | 80 | Black | -30 | 110 | 1,35 | 10 | 350 | 2-4 | on request | |
| KS301 | NBR / SBR | 50 | Black | -30 | 70 | 1,45 | 4 | 200 | 1-20 | on request | |
| KP501 | NBR/PVC | 65 | Green | -30 | 110 | 1,45 | 6,5 | 320 | 2-10 | on request | |
| KS601 | NBR/SBR | 70 | Black | -30 | 70 | 1,45 | 4 | 200 | 1-25 | on request | |
| KS602 | NBR/SBR | 70 | Black | -30 | 90 | 1,45 | 5 | 250 | 1-10 | on request | |
| N2002 | NR | 45 | Light brown | -40 | +85 | 1,05 | 15,6 | 600 | 1-50 | |
|
| N2003 | NR | 45 | Yellow | -40 | +85 | 1,05 | 15,6 | 600 | 1-50 | |
|
| N2004 | NR | 45 | Red | -40 | +85 | 1,05 | 15,6 | 600 | 1-50 | |
|
| N3001 | NR | 50 | Brown | -40 | +85 | 1,20 | 9,8 | 400 | 1-50 | |
|
| A4003 | SBR | 60 | White | -25 | 80 | 1,5 | 7,8 | 250 | FDA list 177.2600 Dm 174 6/4/2004 Dm 174 21/3/1973 |
1-50 | |
| A6001 | SBR | 70 | Black | -25 | +70 | 1,50 | 3,9 | 200 | 1-50 | |
|
| A6002 | SBR | 70 | Black | -25 | +70 | 1,50 | 3,9 | 250 | 1-20 | |
|
| F2009 | VMQ | 40 | Translucent | -90 | 230 | 1,2 | 6 | 250 | FDA, CE N°1935/2004 | 1-10 | on request |
| F4030 | VMQ | 60 | Translucent | -90 | 230 | 1,2 | 6 | 250 | FDA, CE N°1935/2004 | 1-15 | on request |
| F4031 | VMQ | 60 | Blue | -90 | 230 | 1,2 | 6 | 250 | FDA, CE N°1935/2004 | 1-10 | on request |
| F4032 | VMQ | 60 | Red | -90 | 230 | 1,2 | 6 | 250 | FDA, CE N°1935/2004 | 1-10 | on request |
| F4033 | VMQ | 60 | Off-white | -90 | 230 | 1,2 | 6 | 250 | FDA, CE N°1935/2004 | 2-10 | on request |
| F4034 | VMQ | 60 | Dark blue | -90 | 230 | 1,3 | 6 | 200 | Metal-Détectable, FDA CE N°1935/2004 |
2-5 | on request |
| F4036 | VMQ | 60 | Blue | -70 | +200 | 1,30 | 5,85 | 300 | FDA liste 177.2600 | 1-50 | |
| F4037 | VMQ | 60 | White or translucent | -40 | +200 | 1,20 | 5,35 | 250 | FDA liste 177.2600 Dm 174 6/4/2004 Dm 174 21/3/1973 |
1-50 | |
| F4038 | VMQ | 60 | Red | -70 | +200 | 1,20 | 5,85 | 250 | Excellent UV resistance | 1-10 | |
* Further details regarding thicknesses can be found directly on the material data sheets.
Do you need to cut flat gaskets from solid rubber?
From single units to large-scale production runs, we process solid rubber according to your specifications. Our experts guide you in selecting the right density and the perfect cutting method for your industrial applications. Request a quote.
