Expanded PTFE

Expanded PTFE (ePTFE) flat gaskets represent the state-of-the-art solution for industrial sealing applications requiring maximum flexibility and absolute chemical resistance. Thanks to a unique multidirectional microporous structure, the material combines the universal chemical inertness of PTFE with exceptional adaptability, ensuring a secure seal even on fragile or irregular flanges.

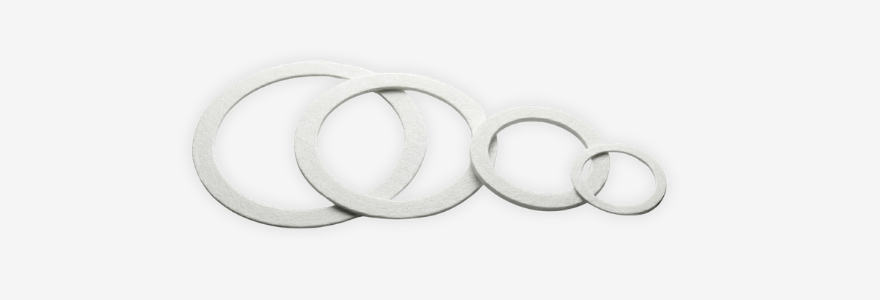

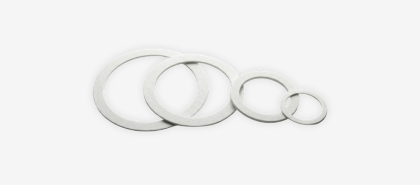

Expanded PTFE Flat Gasket Cutting

Our specialized expanded PTFE materials are tailored to your most critical applications.

Key advantages of expanded PTFE for flat gasket cutting:

- Maximum flexibility and conformability: the fibrous structure adapts to irregular or fragile surfaces (glass, plastic) with minimal tightening force.
- Excellent creep resistance: drastically reduces cold flow, ensuring a durable seal under high pressure and across a temperature range of -240°C to +270°C.
- Total inertness and purity (pH 0–14): unaffected by aggressive fluids and compliant with FDA and EC No. 1935/2004 standards for the food and pharmaceutical industries.

Available as custom-cut gaskets or in standard formats, our expanded PTFE gaskets ensure reliable sealing performance.

ePTFE Material Comparison Chart for Flat Gaskets

View the specifications for our expanded PTFE product below and download the material data sheet for further details.

Material code	Color	Density (g/cm³)	Water absorption (%)	Creep relaxation (%)	Compressibiliy (%)	Tensile stength (%)	Certification	Technical data sheet
EPTFE1	white	0,65 - 0,85	0,01	15	55-60	14	UL 94

Do you need to cut flat gaskets from expanded PTFE (ePTFE)?

From single units to large-scale production runs, we process expanded PTFE according to your specifications. Our experts will help you select the right material for your industrial applications. Request a quote.

Only on request
