Mica
The flat mica gasket is the recommended solution for industrial environments exposed to extreme temperatures, situations where even graphite reaches its limits. Thanks to its composition of phlogopite and a silicone binder, it provides thermal and dielectric insulation for the most demanding applications.

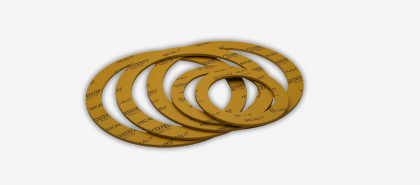

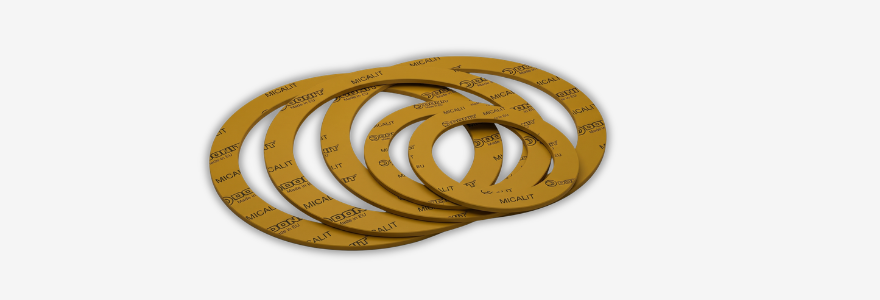

Custom-cut flat mica gaskets
To meet your high-temperature requirements, our range focuses on a flagship product:
- MICA01: composed of mica flakes impregnated with silicone resin, this material ensures reliable sealing for industrial burners, furnaces, ovens, and exhaust systems.
Available for custom gasket fabrication, our mica solutions guarantee minimal thermal conductivity and maximum stability, even at the highest temperatures.
Comparison chart: mica materials for flat gaskets
Consult our chart to select the right product based on your technical requirements. Download our material data sheet for further details.
| Material code | Fiber | Temperature (°C) | Pression (Bar) | Specific gravity (g/cm³) | Compressibility (%) | Tensile strength (%) | Traction (MPa) (%) | Thermal relaxation (MPa) | Dielectric strength (kV/mm) | Ignition loss (%) | Technical data sheet |
| MICA01 | silicone bonded mica | 950 | 5 | 1,90 | 15-35 | 30-45 | 20 | 40 | >15 | <5 |  |
Do you need to cut flat mica gaskets?
From single units to large-scale production runs, we process mica according to your specifications. Our experts assist you in selecting the right material and recommend the ideal cutting method for your industrial applications. Request a quote.
Only on request
