Graphite

The expanded graphite flat gasket is a solution suited to the most critical industrial applications. Thanks to exceptional thermal resistance and a flexible structure, it maintains its sealing properties where other materials fail, particularly under conditions of thermal cycling and high pressure.

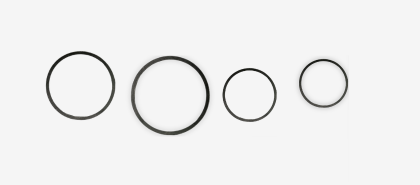

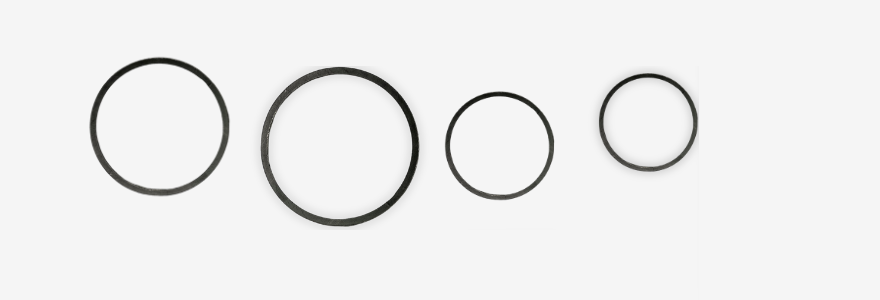

Custom-cut graphite flat gaskets

We cut graphite for your industrial sealing projects. Our GRAF01 grade is recommended for very high-temperature applications. Being unreinforced, GRAF01 can withstand temperatures up to 3000°C in reducing or inert environments, making it the preferred choice for the most extreme thermal and industrial applications.

Available as custom-cut gaskets, our graphite solutions adapt to irregular flange surfaces thanks to their high compressibility.

Graphite material comparison chart for flat gasket cutting

Consult our graphite comparison chart to determine if our material is suitable for your application. Further details are available in the downloadable material data sheet.

Material code	Fiber	Maximale T°  air or oxidizing environment (°C)	Pression (Bar)	Compressibility (%)	Tensile strength (%)	Module compression (%)	Creep relaxation (%)	Technical data sheet
GRAF01	graphite without reinforcement	450 (up to 3000 in air or oxidizing environment)	80	40-50	10-15	45	4,5

Do you need to cut flat graphite gaskets?

From single units to large-scale production runs, we process graphite according to your specifications. Our experts guide you in selecting the right grade for your industrial applications. Request a quote.

Only on request
