Red vulcanized fiber
Red fiber is the historical and economic standard for the design of flat joints capable of ensuring the sealing of water and heating networks. This material offers excellent value for money for domestic and light industrial applications.

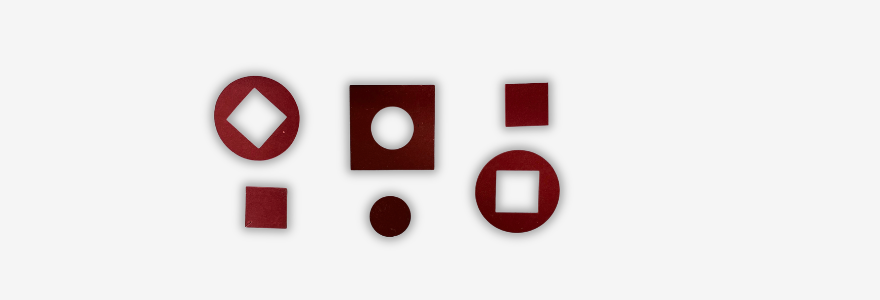

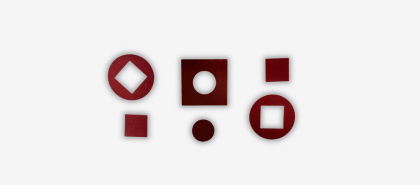

Cutting of custom red fiber flat joints
The main advantages of red fiber for cutting your flat joints:
- Hydraulic sealing: perfectly suited for hot water, cold water and diluted aqueous solutions
- Easy to install thanks to its natural rigidity
Available in custom-cut gaskets or in standard formats, our red fiber gaskets provide reliable and immediate sealing.
Red fiber material comparison table for cutting flat joints
Consult our table of materials for red fiber flat gaskets to verify their compatibility in your project. Download our material sheets for more details.
| Material code | Thickness (mm) |
Density (g/cm³) |
MD Traction (kg/mm²) | CD Traction (kg/mm²) |
Rupture MD |
Rupture CD |
Compression (kg/mm²) | Thermal class (C°) |
Electric force in air |
Ash residue |
Technical data sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|
| FV001 | 0,5 to 3,00 | 1,20 to 1,35 | ≥ 8 | ≥ 4,5 | ≥ 6 | ≥ 10 | ≥ 20 | 105 | ≥ 7,5 | ≤ 5 |  |
| FV002 | 0,5 to 3,00 | 1,15 to 1,30 | ≥ 6,0 | ≥ 4,0 | ≥ 6 | ≥ 8 | ≥ 18 | 105 | ≥ 7,5 | ≤ 5 | |
| FV003 | 0,5 to 3,00 | 1,20 to 1,35 | ≥ 8,0 | ≥ 6,0 | ≥ 10 | ≥ 12 | ≥ 18 | 105 | ≥ 5 | ≤ 5 | |
Do you need to cut flat red fiber gaskets?
From single units to large-scale production runs, we process red fiber according to your specifications. Our experts guide you in selecting the right material for your industrial applications. Request a quote.
Only on request
