Cork

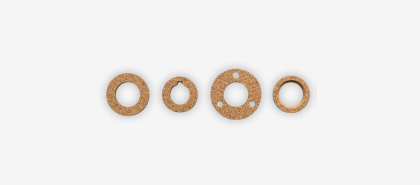

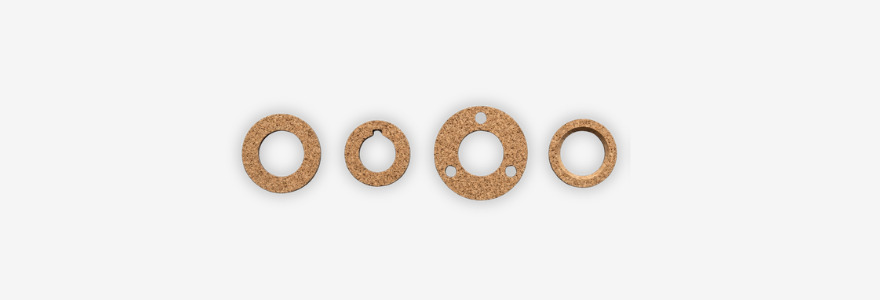

Flat cork gaskets
Flat cork gaskets offer a lightweight, high-performance sealing solution, valued particularly for their elastic recovery and ability to conform to surface irregularities. Thanks to a natural structure combined with technical binders, they minimize creep and fastener distortion.
Our range includes two technical solutions for your applications:
- Resin-bonded cork (LI001): ideal for automotive or industrial use, offering excellent resistance to hydrocarbons. Available with a fabric insert for increased tensile strength.
- Nitrile-bonded cork (LI002): formulated with an NBR binder, this high-performance compound holds gas approval (DIN 3535-5). Ideal for sealing applications in boilers, regulators, and precision valves.
Available as custom die-cut parts, our cork gaskets provide a cost-effective, reliable solution for your static sealing needs.
Comparison chart for flat-cut cork gaskets
Consult our comparison chart to identify the product best suited to your requirements. Download our material data sheets for further details.
| Material code | Specific gravity (kg/m³) |
Hardness ISO 48 (Shore A) |
Compressibility ASTM F36 (%) |
Recovery ASTM F36 (%) |
Tensile strength NF-T-46-007 (daN/cm²) |
Elongation before break ISO 37 (%) |
Certification | Technical data sheet |
| LI001 | (NF-T 46-002) 205-225 |
/ | (ASTM test at 100 psi) 32 |
(ASTM test at 100 psi) 84 |
7 | / |  |
|
| LI002 | (ASTM F1315) 700-900 |
65 | (ASTM test at 400 psi) 25-40 |
75 | / | 40 | DVGW | |
Do you need to cut flat cork gaskets?
From single units to large-scale production runs, we process cork according to your specifications. Our experts will help you select the right grade for your industrial applications. Request a quote.
