Elastomeric fiber

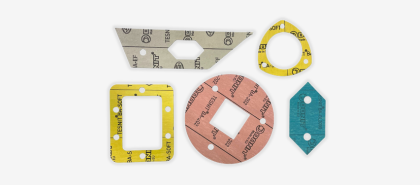

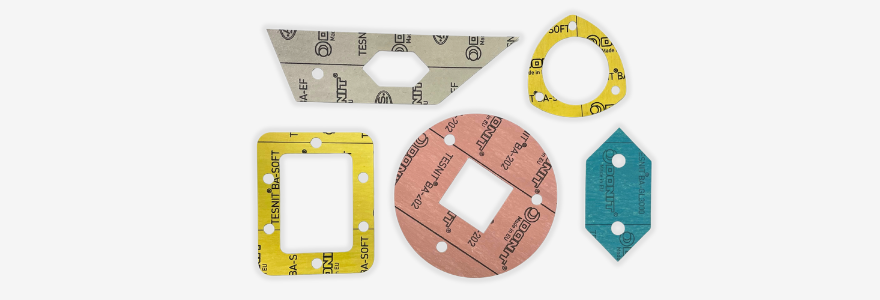

Custom-cut fiber gaskets
As specialists in industrial sealing for over 40 years, we process DONIT® TESNIT® materials, a global reference in compressed fiber, into flat gaskets for your applications. These materials are renowned for their optimal thermo-mechanical resistance in scenarios where conventional elastomers reach their limits.
Our expertise relies on a range of grades suited to various environments:
- General-purpose applications: TESNIT® BA-U (universal standard) and TESNIT® BA-202/GREEN, versatile materials approved for water and gas.
- High temperatures and steam: TESNIT® BA-GL (glass fiber), TESNIT® BA-CF (carbon fiber), and TESNIT® BA-R (metal-reinforced) materials for service conditions up to 350°C.
- Low-pressure sealing: The innovative TESNIT® BA-SOFT offers maximum compressibility for irregular or fragile surfaces.
- Chemical and food industry applications: TESNIT® BA-C for excellent acid resistance, and specific grades like TESNIT® BA-KTW or TESNIT® BA-50 for sanitary requirements.
Available as custom-cut gaskets, our fiber materials ensure absolute safety for your steam, gas, hydrocarbon, and chemical fluid systems.
We can also cut materials from other brands upon consultation.
Comparison chart: Fiber and elastomer materials for flat gaskets
Consult our elastomeric fiber comparison chart to select the right material for your application. Download our material data sheets for further details.
| Material code | Fiber | Binder | Filler | Color |
Compress. (%) |
Recovery (%) |
Traction (MPa) |
Constante T° (°C) |
Peak T° (°C) |
Steam T° (°C) |
Pression (Bar) |
Technical data sheet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BA-202 | cellulose | NBR | inorganics | Red | 9 | 60 | 8 | 140 | 180 | 120 | 40 |  |
| BA-202-GREEN | cellulose | NBR | inorganics | Green | 9 | 60 | 8 | 140 | 180 | 120 | 40 | |
| BA-203 | aramid | NBR | inorganics | Yellow | 10 | 60 | 8 | 200 | 250 | 160 | 50 | |
| BA-50 | aramid | NBR | inorganics | Light green | 9 | 55 | 11 | 220 | 280 | 180 | 80 | |
| BA-55 | mineral biosoluble synthetic |
NBR | inorganics | Dark green | 7 | 55 | 7 | 270 | 350 | 230 | 100 | |
| BA-U | aramid | NBR | inorganics | Blue | 11 | 60 | 12 | 250 | 350 | 200 | 100 | |
| BA-SOFT | synthetic | NBR | speciales | Lemon yellow | 25 | 64 | 6 | 250 | 350 | 200 | 100 | |
| BA-GL | aramid glass |
NBR | inorganics | Blue-green | 7 | 55 | 11 | 350 | 440 | 250 | 120 | |
| BA-KTW-G | aramid | NBR | inorganics | Off-white | 13 | 60 | 11 | 250 | 350 | 200 | 100 | |
| BA-U2000 | aramid | NBR | inorganics | Blue | 8 | 55 | 18 | 280 | 400 | 200 | 140 | |
| BA-C | aramid | CSM | inorganics | Beige | 10 | 58 | 13 | 150 | 200 | / | 60 | |
| BA-CF | carbon | NBR | inorganics | Black | 9 | 60 | 12 | 300 | 400 | 280 | 120 | |
| BA-R | no but made with metal insert | NBR | inorganics | Black | 8 | 55 | 17 | 350 | 400 | / | 140 | |
Do you need to cut flat fiber gaskets?
From single units to large-scale production runs, we process fiber materials according to your specifications. Our experts guide you in selecting the right solution for your industrial applications. Request a quote.
Only on request
