BECA 150 - 152 - 154

Hydraulic seals / Rod seals

Description

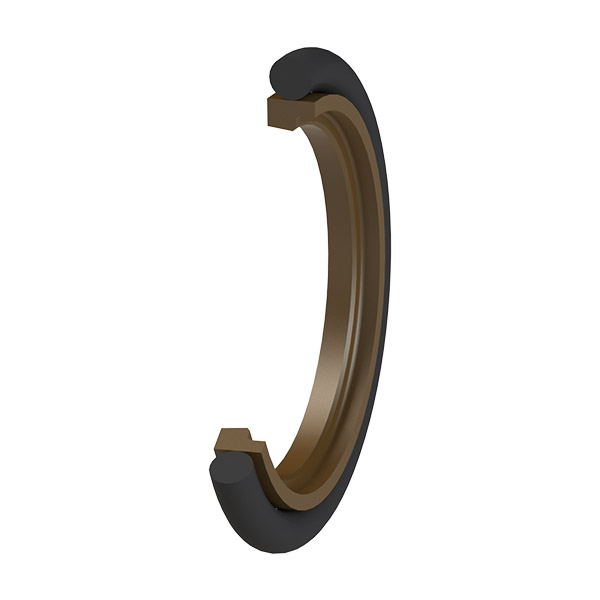

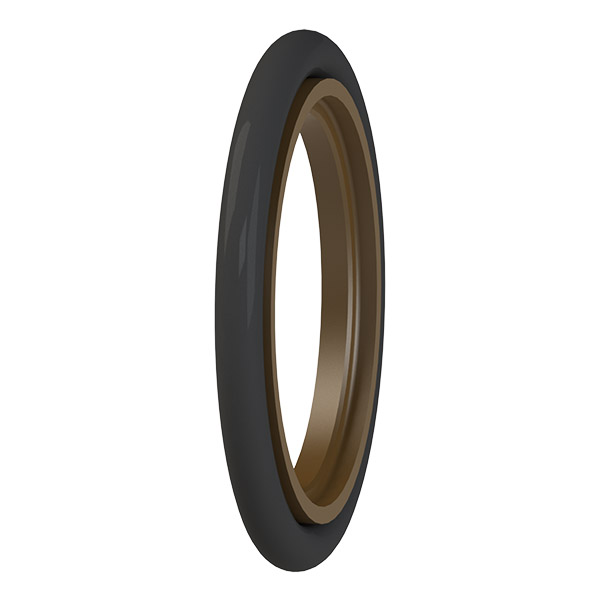

The BECA 150 - 152 - 154 profiles are single acting composite rod seals composed of a filled PTFE friction ring and pre-tightened rubber O'Ring. They can be assembled in grooves according to standard ISO 7425/2. Option of connecting the seal to a back-up ring.

Advantages

Optimal sealing in static and dynamic applications
Low friction coefficient; no stick-slip effect
Excellent abrasion and extrusion resistance
Wide temperature range and excellent chemical resistance, depending on the material selected for the O'Ring

Technical data

Temperature	-30°C/+200°C
Pressure	50 MPa
Speed	5 m/s
Medias	Mineral hydraulic oils Fire-resistant liquids Biocompatible fluids Water Others (contact our experts)

Applications

Mobile machinery
Injection presses
Machine tools
Presses
Standard cylinders

Materials

Friction ring

Bronze-filled PTFE
Carbon-filled PTFE
GL Blue PTFE

O'Ring

NBR 70 Shore A
FKM 70 Shore A

Download

Product data - Hydraulic rod seal - BECA 150 - 152 - 154 Product catalog - Hydraulic seals - Rod seals Product catalog - Hydraulic seals

Dimensions

Installation dimensions

Materials

Technical data

Dimensions

150.003, 150.004, 150.005, 150.006, 150.007, 152.008, 150.008, 154.008, 152.009, 150.009, 154.009, 152.010, 150.010, 154.010, 152.011, 150.011, 154.011, 152.012, 150.012, 154.012, 152.013, 150.013, 154.013, 152.014, 150.014, 154.014, 152.015, 150.015, 154.015, 152.016, 150.016, 154.016, 152.017, 150.017, 154.017, 152.018, 150.018, 154.018, 152.019, 150.019, 154.019, 152.020, 150.020, 154.020, 152.021, 150.021, 154.021, 152.022, 150.022, 154.022, 152.024, 150.024, 154.024, 152.025, 150.025, 154.025, 152.026, 150.026, 154.026, 152.027, 150.027, 154.027, 152.028, 150.028, 154.028, 152.029, 150.029, 154.029, 152.030, 150.030, 154.030, 152.032, 150.032, 154.032, 152.034, 150.034, 154.034, 152.035, 150.035, 154.035, 152.036, 150.036, 154.036, 152.038, 150.038, 154.038, 152.039, 150.039, 154.039, 152.040, 150.040, 154.040, 152.041, 150.041, 154.041, 152.042, 150.042, 154.042, 152.044, 150.044, 154.044, 152.045, 150.045, 154.045, 152.046, 150.046, 154.046, 152.047, 150.047, 154.047, 152.048, 150.048, 154.048, 152.050, 150.050, 154.050, 152.051, 150.051, 154.051, 152.052, 150.052, 154.052, 152.055, 150.055, 154.055, 152.056, 150.056, 154.056, 152.058, 150.058, 154.058, 152.060, 150.060, 154.060, 152.061, 150.061, 154.061, 152.062, 150.062, 154.062, 152.063, 150.063, 154.063, 152.065, 150.065, 154.065, 152.067, 150.067, 154.067, 152.068, 150.068, 154.068, 152.070, 150.070, 154.070, 152.072, 150.072, 154.072, 152.075, 150.075, 154.075, 152.078, 150.078, 154.078, 152.079, 150.079, 154.079, 152.080, 150.080, 154.080, 152.081, 150.081, 154.081, 152.082, 150.082, 154.082, 152.083, 150.083, 154.083, 152.084, 150.084, 154.084, 152.085, 150.085, 154.085, 152.086, 150.086, 154.086, 152.088, 150.088, 154.088, 152.090, 150.090, 154.090, 152.092, 150.092, 154.092, 152.095, 150.095, 154.095, 152.098, 150.098, 154.098, 152.100, 150.100, 154.100, 152.105, 150.105, 154.105, 152.108, 150.108, 154.108, 152.110, 150.110, 154.110, 152.115, 150.115, 154.115, 152.120, 150.120, 154.120, 152.125, 150.125, 154.125, 152.127, 150.127, 154.127, 152.130, 150.130, 154.130, 152.135, 150.135, 154.135, 152.138, 150.138, 154.138, 152.140, 150.140, 154.140, 152.145, 150.145, 154.145, 152.150, 150.150, 154.150, 152.155, 150.155, 154.155, 152.160, 150.160, 154.160, 152.165, 150.165, 154.165, 152.170, 150.170, 154.170, 152.175, 150.175, 154.175, 152.180, 150.180, 154.180, 152.185, 150.185, 154.185, 152.190, 150.190, 154.190, 152.195, 150.195, 154.195, 152.200, 150.200, 154.200, 152.210, 150.210, 154.210, 152.215, 150.215, 154.215, 152.220, 150.220, 154.220, 152.230, 150.230, 154.230, 152.240, 150.240, 154.240, 152.250, 150.250, 154.250, 152.260, 150.260, 154.260, 152.270, 150.270, 154.270, 152.275, 150.275, 154.275, 152.280, 150.280, 154.280, 152.285, 150.285, 154.285, 152.290, 150.290, 154.290, 152.295, 150.295, 154.295, 152.300, 150.300, 154.300, 152.305, 150.305, 154.305, 152.310, 150.310, 154.310, 152.320, 150.320, 154.320, 152.330, 150.330, 154.330, 152.340, 150.340, 154.340, 152.350, 150.350, 154.350, 152.360, 150.360, 154.360, 152.370, 150.370, 154.370, 152.380, 150.380, 154.380, 152.390, 150.390, 154.390, 152.400, 150.400, 154.400, 152.410, 150.410, 154.410, 152.420, 150.420, 154.420, 152.430, 150.430, 154.430, 152.440, 150.440, 154.440, 152.450, 150.450, 154.450, 152.460, 150.460, 154.460, 152.470, 150.470, 154.470, 152.480, 150.480, 154.480, 152.490, 150.490, 154.490, 152.500, 150.500, 154.500, 152.510, 150.510, 154.510, 152.520, 150.520, 154.520, 152.530, 150.530, 154.530, 152.540, 150.540, 154.540, 152.550, 150.550, 154.550, 152.560, 150.560, 154.560, 152.570, 150.570, 154.570, 152.580, 150.580, 154.580, 152.590, 150.590, 154.590, 152.600, 150.600, 154.600, 152.610, 150.610, 154.610, 152.620, 150.620, 154.620, 152.630, 150.630, 154.630, 152.640, 150.640, 154.640, 152.650, 150.650, 154.650, 152.660, 150.660, 154.660, 152.670, 150.670, 154.670, 152.680, 150.680, 154.680, 152.690, 150.690, 154.690, 152.700, 150.700, 154.700, 152.710, 150.710, 154.710, 152.720, 150.720, 154.720, 152.730, 150.730, 154.730, 152.740, 150.740, 154.740, 152.750, 150.750, 154.750, 152.760, 150.760, 154.760, 152.770, 150.770, 154.770, 152.780, 150.780, 154.780, 152.790, 150.790, 154.790, 152.800, 150.800, 154.800, 152.850, 150.850, 154.850, 152.900, 150.900, 154.900, 152.950, 150.950, 154.950

Installation drawing Logement Gorge joint de tige Housing Groove rod seal BECA 150 - 152 - 154

Installation dimensions

Installation drawing for the BECA 150 - 152 - 154 rod seal

Installation dimensions

Rod diameter Ød1 f8/h9			Groove diameter	Groove width	Radial section	O'Ring cross-section
BECA 150 Standard series	BECA 152 Light series	BECA 154 Heavy-duty series	ØD1 H9	L1 0/+0.20	S	Ød2
3.0 - 7.9	8.0 - 18.9	---	d1 + 4.90	2.20	2.45	1.78
8.0 - 18.9	19.0 - 37.9	---	d1 + 7.30	3.20	3.65	2.62
19.0 - 37.9	38.0 - 199.9	8.0 - 18.9	d1 + 10.70	4.20	5.35	3.53
38.0 - 199.9	200.0 - 255.9	19.0 - 37.9	d1 + 15.10	6.30	7.55	5.33
200.0 - 255.9	256.0 - 649.9	38.0 - 199.9	d1 + 20.50	8.10	10.25	6.99
256.0 - 649.9	650.0 - 999.9	200.0 - 255.9	d1 + 24.00	8.10	12.00	6.99
650.0 - 999.9	1000.0 - 1200.0	256.0 - 649.9	d1 + 27.30	9.50	13.65	8.40
1000.0 - **	---	650.0 - 999.9	d1 + 38.00	13.80	19.00	12.00

For special applications > 40 MPa, we recommend using an H8/f8 tolerance (groove/rod) or selecting other more suitable materials. Please contact our experts.

Materials

Friction ring					O'Ring			Contact surface area
Standard code	ISO code	Material	Colour	Characteristics	Code	Type of material	Service temperature	Contact surface area
DP	P	Virgin PTFE	White	Resistance to chemical products Sealing water Dielectric Non-stick Low friction coefficient Food & Beverage	K6	NBR 70 Shore A	-30°C/+100°C	Steel Stainless steel Chrome steel Aluminium Bronze Cast iron Treated surface
					G6	FKM 70 Shore A	-20°C/+200°C
					C6	EPDM 70 Shore A	-45°C/+150°C
					F6	VMQ 70 Shore A	-60°C/+200°C
DC	C	PTFE +25% Carbon	Grey	Improvement Wear properties Compression set Good resistance to chemical products Thermal and electrical conductivity Anti-static Efficient as part of dynamic applications with compression	K6	NBR 70 Shore A	-30°C/+100°C
					G6	FKM 70 Shore A	-20°C/+200°C
					C6	EPDM 70 Shore A	-45°C/+150°C
CG	C	PTFE + 23% Carbon + 2% Graphite	Black		K6	NBR 70 Shore A	-30°C/+100°C
					G6	FKM 70 Shore A	-20°C/+200°C
					C6	EPDM 70 Shore A	-45°C/+150°C
DV	V	PTFE + 25 % Glass	Blue	Improvement Wear properties Mechanical strength Slightly more abrasive but can be corrected with the addition of MOS2 Chemical and dielectric properties preserved Well suited to applications with rotating and simultaneous alternating movements	K6	NBR 70 Shore A	-30°C/+100°C	Steel Chrome steel Cast iron
DV	V	PTFE + 25 % Glass	Blue		G6	FKM 70 Shore A	-20°C/+200°C
VM	M	PTFE + 15 % Glass + 5% MoS2	Grey		K6	NBR 70 Shore A	-30°C/+100°C
VM	M	PTFE + 15 % Glass + 5% MoS2	Grey		G6	FKM 70 Shore A	-20°C/+200°C
DX	X	GL Blue PTFE + Glass + Metal oxides	Turquoise blue	Compression resistant Wear resistant Excellent chemical stability Good thermal conductivity	K6	NBR 70 Shore A	-30°C/+100°C
DX	X	GL Blue PTFE + Glass + Metal oxides	Turquoise blue		G6	FKM 70 Shore A	-20°C/+200°C
DG	G	PTFE + 15% Graphite	Black	Improvement Wear properties Reduced wear on metal parts Self-lubricating Thermal and electrical conductivity Low permeability Good friction coefficient Anti-static Efficient as part of dynamic dynamic applications with self-lubrication	K6	NBR 70 Shore A	-30°C/+100°C	Steel Stainless steel Chrome steel Aluminium Bronze Cast iron Treated surface
					G6	FKM 70 Shore A	-20°C/+200°C
					C6	EPDM 70 Shore A	-45°C/+150°C
K1	K	PTFE + 10% Ekonol	Light brown	Improvement Better abrasion resistance Better dimensional stability at high temperatures Use up to + 300°C Good friction coefficient and low permeability	K6	NBR 70 Shore A	-30°C/+100°C
					G6	FKM 70 Shore A	-20°C/+200°C
					C6	EPDM 70 Shore A	-45°C/+150°C
K2	K	PTFE + 20% Ekonol	Light brown		K6	NBR 70 Shore A	-30°C/+100°C
					G6	FKM 70 Shore A	-20°C/+200°C
					C6	EPDM 70 Shore A	-40°C/+145°C
DB	B	PTFE + 60% Bronze	Dark brown	Improvement Wear properties Deformation and creep resistance Compression resistant Self-lubricating Electrical and thermal conductivity Does not alter metal parts Reduced resistance to certain chemical products Used for dynamic seals with a strong compression and low level of wear	K6	NBR 70 Shore A	-30°C/+100°C	Steel Chrome steel Cast iron
DB	B	PTFE + 60% Bronze	Dark brown		G6	FKM 70 Shore A	-20°C/+200°C
B4	B	PTFE + 40% Bronze	Dark brown		K6	NBR 70 Shore A	-30°C/+100°C
B4	B	PTFE + 40% Bronze	Dark brown		G6	FKM 70 Shore A	-20°C/+200°C
HG	HG	PE-UHMW	White or off-white	Excellent wear resistance on contact with water and air	K6	NBR 70 Shore A	-30°C/+80°C	Steel Stainless steel Chrome steel Aluminium Bronze Cast iron Treated surface
PU	U	Polyurethane	Blue	Large mechanical resistance Good abrasion and wear resistance High elastic modulus Good flexibility Very good ozone and oxidation resistance	K6	NBR 70 Shore A	-30°C/+90°C
PUHT	U	High-temperature polyurethane	White or off-white		K6	NBR 70 Shore A	-30°C/+100°C

Other grades of materials are available depending on your specificities.

Technical data

Housing Groove Gland Rod Seal - BECA 150 - 152 - 154

Extrusion gaps

Radial section S	Radial extrusion gap F/2
Radial section S	10 MPa	20 MPa	40 MPa
2.45	0.30	0.20	0.15
3.65	0.40	0.25	0.15
5.35	0.50	0.30	0.20
7.55	0.70	0.40	0.25
10.25	0.80	0.60	0.35
12.00	0.90	0.70	0.40
13.65	1.00	0.80	0.50
19.00	1.20	0.90	0.60

Surface roughness

Roughness	Dynamic surface area	Static surface area	Groove flanks
Ra	0.05 - 0.2 µm	≤ 1.6 µm	≤ 3.2 µm
Rz	0.40 - 1.6 µm	≤ 6.3 µm	≤ 10.0 µm
Rmax	0.63 - 2.5 µm	≤ 10.0 µm	≤ 16.0 µm

Chamfers and radius

Radial section S	Radius R1	Radius R2	Chamfer C
2.45	0.30	0.40	3.00
3.65	0.30	0.60	3.00
5.35	0.30	1.00	3.00
7.55	0.30	1.30	5.00
10.25	0.30	1.80	6.00
12.00	0.30	1.80	8.00
13.65	0.30	2.50	10.00
19.00	0.30	3.00	12.00

479 dimensions found

154.044 Standard request	44,00	64,50	8,10
152.045 Standard request	45,00	55,70	4,20
150.045 Standard request	45,00	60,10	6,30
154.045 Standard request	45,00	65,50	8,10
152.046 Standard request	46,00	56,70	4,20
150.046 Standard request	46,00	61,10	6,30
154.046 Standard request	46,00	66,50	8,10
152.047 Standard request	47,00	57,70	4,20
150.047 Standard request	47,00	62,10	6,30
154.047 Standard request	47,00	67,50	8,10
152.048 Standard request	48,00	58,70	4,20
150.048 Standard request	48,00	63,10	6,30
154.048 Standard request	48,00	68,50	8,10
152.050 Standard request	50,00	60,70	4,20
150.050 Standard request	50,00	65,10	6,30
154.050 Standard request	50,00	70,50	8,10
152.051 Standard request	51,00	61,70	4,20
150.051 Standard request	51,00	66,10	6,30
154.051 Standard request	51,00	71,50	8,10
152.052 Standard request	52,00	62,70	4,20
150.052 Standard request	52,00	67,10	6,30
154.052 Standard request	52,00	72,50	8,10
152.055 Standard request	55,00	65,70	4,20
150.055 Standard request	55,00	70,10	6,30
154.055 Standard request	55,00	75,50	8,10
152.056 Standard request	56,00	66,70	4,20
150.056 Standard request	56,00	71,10	6,30
154.056 Standard request	56,00	76,50	8,10
152.058 Standard request	58,00	68,70	4,20
150.058 Standard request	58,00	73,10	6,30
154.058 Standard request	58,00	78,50	8,10
152.060 Standard request	60,00	70,70	4,20
150.060 Standard request	60,00	75,10	6,30
154.060 Standard request	60,00	80,50	8,10
152.061 Standard request	61,00	71,70	4,20
150.061 Standard request	61,00	76,10	6,30
154.061 Standard request	61,00	81,50	8,10
152.062 Standard request	62,00	72,70	4,20
150.062 Standard request	62,00	77,10	6,30
154.062 Standard request	62,00	82,50	8,10
152.063 Standard request	63,00	73,70	4,20
150.063 Standard request	63,00	78,10	6,30
154.063 Standard request	63,00	83,50	8,10
152.065 Standard request	65,00	75,70	4,20
150.065 Standard request	65,00	80,10	6,30
154.065 Standard request	65,00	85,50	8,10
152.067 Standard request	67,00	77,70	4,20
150.067 Standard request	67,00	82,10	6,30
154.067 Standard request	67,00	87,50	8,10
152.068 Standard request	68,00	78,70	4,20
150.068 Standard request	68,00	83,10	6,30
154.068 Standard request	68,00	88,50	8,10
152.070 Standard request	70,00	80,70	4,20
150.070 Standard request	70,00	85,10	6,30
154.070 Standard request	70,00	90,50	8,10
152.072 Standard request	72,00	82,70	4,20
150.072 Standard request	72,00	87,10	6,30
154.072 Standard request	72,00	92,50	8,10
152.075 Standard request	75,00	85,70	4,20
150.075 Standard request	75,00	90,10	6,30
154.075 Standard request	75,00	95,50	8,10
152.078 Standard request	78,00	88,70	4,20
150.078 Standard request	78,00	93,10	6,30
154.078 Standard request	78,00	98,50	8,10
152.079 Standard request	79,00	89,70	4,20
150.079 Standard request	79,00	94,10	6,30
154.079 Standard request	79,00	99,50	8,10
152.080 Standard request	80,00	90,70	4,20
150.080 Standard request	80,00	95,10	6,30
154.080 Standard request	80,00	100,50	8,10
152.081 Standard request	81,00	91,70	4,20
150.081 Standard request	81,00	96,10	6,30
154.081 Standard request	81,00	101,50	8,10
152.082 Standard request	82,00	92,70	4,20
150.082 Standard request	82,00	97,10	6,30
154.082 Standard request	82,00	102,50	8,10
152.083 Standard request	83,00	93,70	4,20
150.083 Standard request	83,00	98,10	6,30
154.083 Standard request	83,00	103,50	8,10
152.084 Standard request	84,00	94,70	4,20
150.084 Standard request	84,00	99,10	6,30
154.084 Standard request	84,00	104,50	8,10
152.085 Standard request	85,00	95,70	4,20
150.085 Standard request	85,00	100,10	6,30
154.085 Standard request	85,00	105,50	8,10
152.086 Standard request	86,00	96,70	4,20
150.086 Standard request	86,00	101,10	6,30
154.086 Standard request	86,00	106,50	8,10
152.088 Standard request	88,00	98,70	4,20
150.088 Standard request	88,00	103,10	6,30
154.088 Standard request	88,00	108,50	8,10
152.090 Standard request	90,00	100,70	4,20
150.090 Standard request	90,00	105,10	6,30
154.090 Standard request	90,00	110,50	8,10
152.092 Standard request	92,00	102,70	4,20
150.092 Standard request	92,00	107,10	6,30
154.092 Standard request	92,00	112,50	8,10
152.095 Standard request	95,00	105,70	4,20
150.095 Standard request	95,00	110,10	6,30
154.095 Standard request	95,00	115,50	8,10
